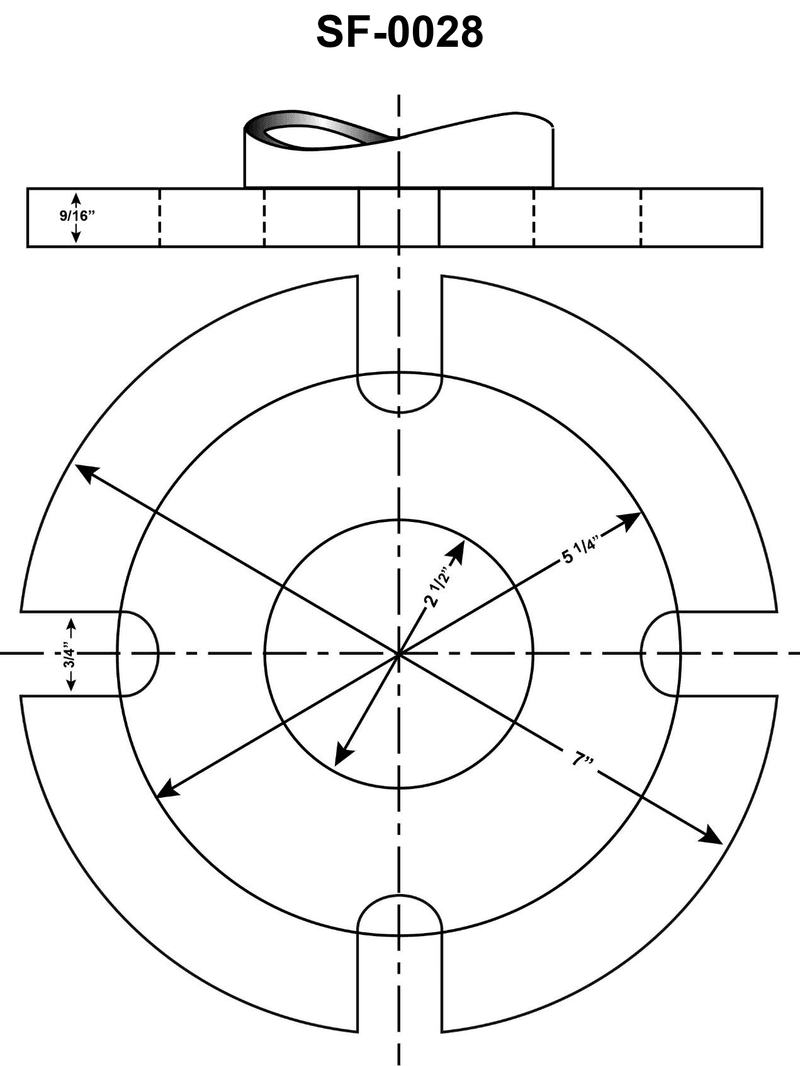

Which of the following correctly identifies the device shown in the illustration? See illustration SF-0028.

Back

Question 1 of 20

5eccef9ebacbc34ba4d46401

Which of the following correctly identifies the device shown in the illustration? See illustration SF-0028.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Compare the dimensions and shape in the drawing (bolt circle, center opening, thickness) with standard connection fittings required by SOLAS and USCG. • Think about which systems on board must be able to connect quickly to shore equipment in an emergency, and which ones typically use permanent piping instead of a loose plate like this. • Recall which device is required on most seagoing vessels to allow shore-based fire services to supply or draw water from the ship’s fire main.

💭 Think About

• What kind of system would use a flat circular plate with symmetrical slots and bolt holes so it can match many different shore flange patterns? • Which of the listed options is specifically described in regulations as having standardized international dimensions, so it can be used in any port worldwide? • Would fuel or sewage systems normally use an open central hole like this, or would they require more secure, dedicated piping and couplings?

✅ Before You Answer

• Verify which device in the choices is required by SOLAS II-2 and USCG rules to allow connection between the ship and shore fire-fighting equipment. • Check which option is commonly called an “international shore connection” and compare that term with the geometry of the drawing. • Confirm whether fuel or sewage connections are usually flanged pipe connections specific to the vessel’s system, rather than a universal adapter plate.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

Which of the following correctly identifies the device shown in the illustration? See illustration SF-0028.

A fire main international shore connection

An international discharge connection

A U.S.C.G. approved fuel connection

A U.S.C.G. approved sewage disposal connection
