Which of the following conditions will cause...

Question 1 of 2921866636eef28f7522a1c51fb0f

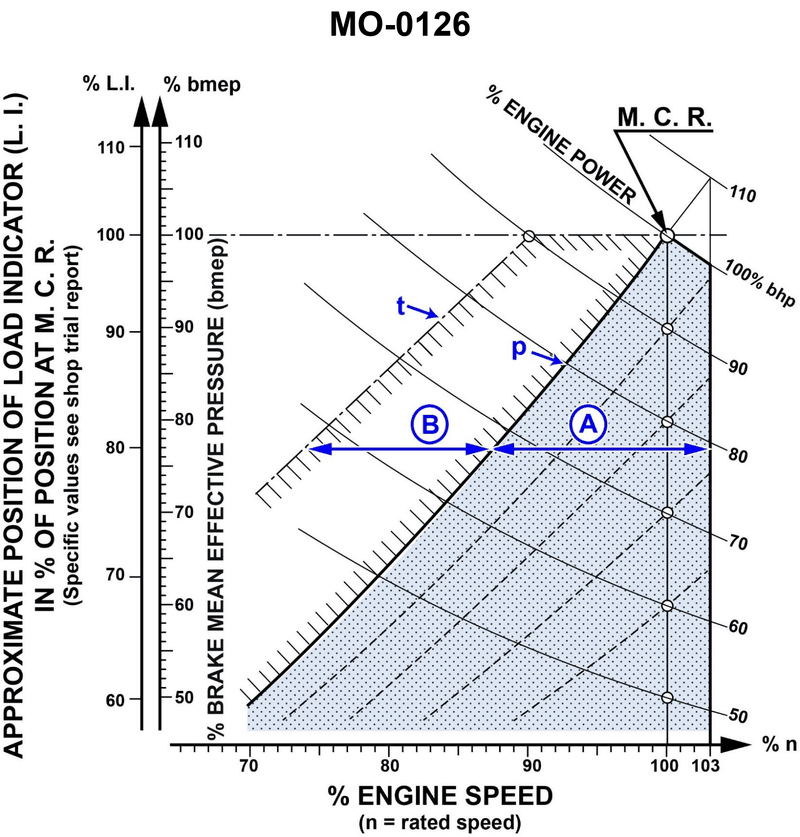

Which of the following conditions will cause the engine to operate in area "A" of the diagram shown in the illustration? Illustration MO-0126

Back

Question 1 of 29218

Which of the following conditions will cause the engine to operate in area "A" of the diagram shown in the illustration? Illustration MO-0126

No Illustration

This question does not have an illustration

🔍 Key Concepts

• Engine load diagram: Relationship between % engine speed (rpm) and % brake mean effective pressure (bmep) and how that shows light load vs heavy load. • How a change in propeller load (more or less resistance) shifts the operating point along the horizontal line at about 80% bmep from area B (lower rpm) to area A (higher rpm). • How conditions like fouled hull, cavitation, or damaged propeller each affect propeller resistance, thrust, and therefore engine speed and load.

💭 Think About

• On the diagram, is area "A" at a higher or lower engine speed than area "B" for the same bmep, and does that represent a heavier or lighter load on the engine? • Which of the listed conditions would tend to let the engine turn faster (toward or above rated rpm) for the same throttle setting because the propeller is doing less work? • Which conditions increase hull or propeller resistance (making the engine slow down) versus decrease resistance (letting the engine speed up)?

✅ Before You Answer

• Identify whether area "A" represents an underloaded or overloaded engine condition for a fixed fuel rack or throttle position. • For each answer choice, decide if it would make the propeller harder or easier to turn at a given rpm. • Eliminate any option that would clearly shift the operating point leftward to lower rpm (heavier load) rather than rightward to higher rpm (lighter load) on the diagram.
