Which of the following components listed is...

Question 1 / 2066636eee28f7522a1c51e93f

Question 1 of 2066636eee28f7522a1c51e93f

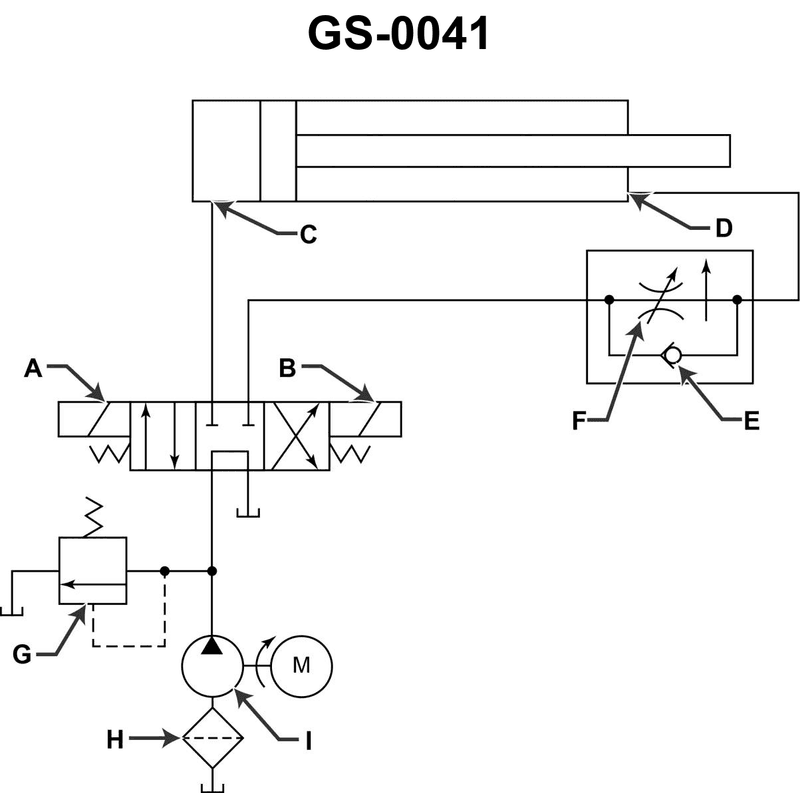

Which of the following components listed is shown in the illustration? Illustration GS-0041

Back

Question 1 of 20

66636eee28f7522a1c51e93f

Which of the following components listed is shown in the illustration? Illustration GS-0041

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Carefully compare standard hydraulic schematic symbols for a pump, heat exchanger, and filter with the symbols shown in illustration GS-0041. • Note how a variable displacement pump is drawn differently from a fixed displacement pump (look for an adjustment/tilt or control element). • Identify the typical filter symbol in hydraulic diagrams (often a diamond‑shaped or similar element in the return or pressure line).

💭 Think About

• Which labeled elements in the lower part of the diagram look like a pump driven by a motor, and does that pump symbol indicate variable displacement? • Do you see any symbol that clearly represents a heat exchanger (usually showing two separate flow paths exchanging heat, often with crossing or parallel lines)? • Can you locate a symbol that matches a filter, and if so, is there any sign anywhere of a heat exchanger symbol at all?

✅ Before You Answer

• Verify whether a variable displacement pump symbol (with control/adjustment marking) is actually present, not just any pump. • Check explicitly if a recognizable heat exchanger symbol appears anywhere; if you cannot clearly find one, do not assume it is there. • Confirm that a filter symbol is present and correctly identified before considering choice D) All of the above.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

Which of the following components listed is shown in the illustration? Illustration GS-0041

Variable displacement pump

Heat exchanger

Filter

All of the above
