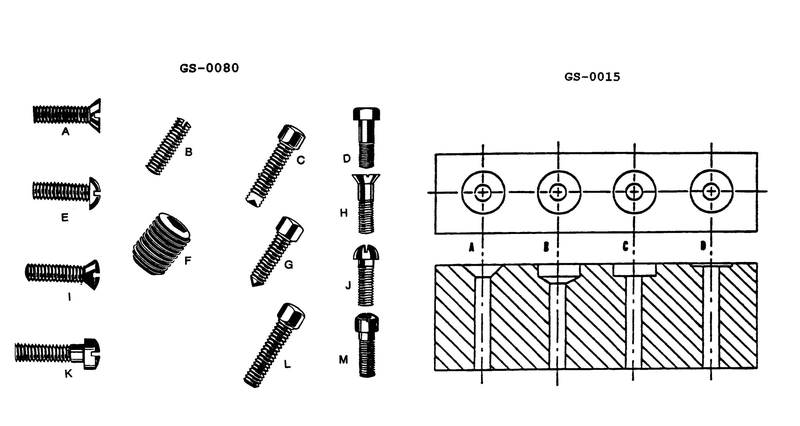

Which of the figures in illustration GS-0080 would be used in conjunction with figure "C" in illustration GS-0015? Illustrations GS-0015 and GS-0080
