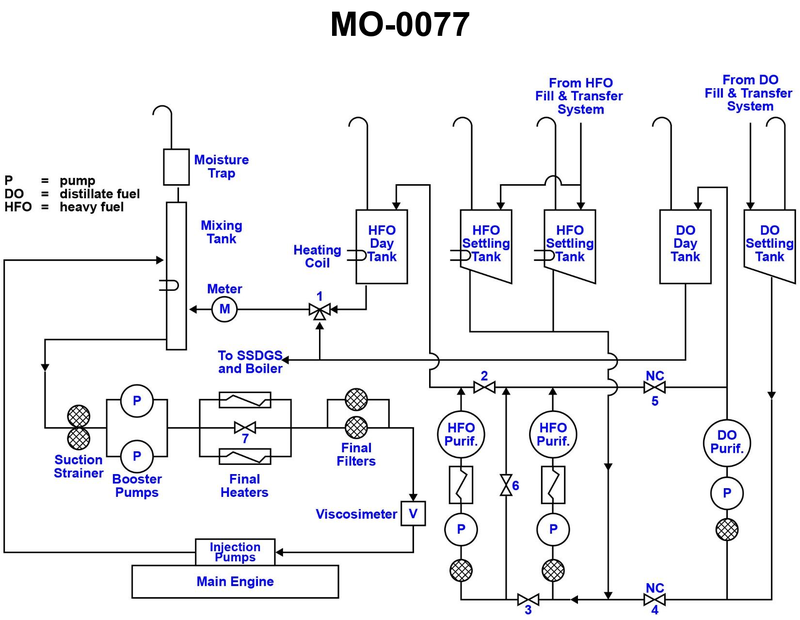

When operating the HFO purifiers in "parallel", as shown in the illustration __________. Illustration MO-0077

valve "2" would be closed

valve "3" would be closed

valve "6" would be closed

All of the above
