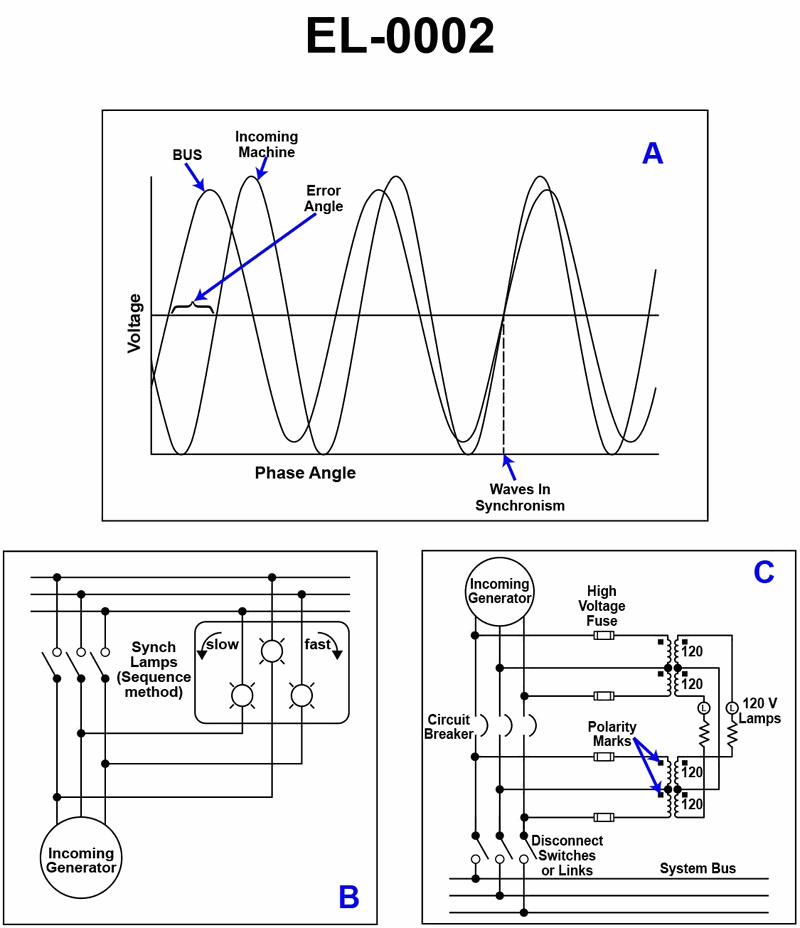

What will be the status of the two synchronizing lamps as shown in circuit "C" of the illustration at the instant when the waves are in synchronism as shown in graph "A"? See illustration EL-0002.
