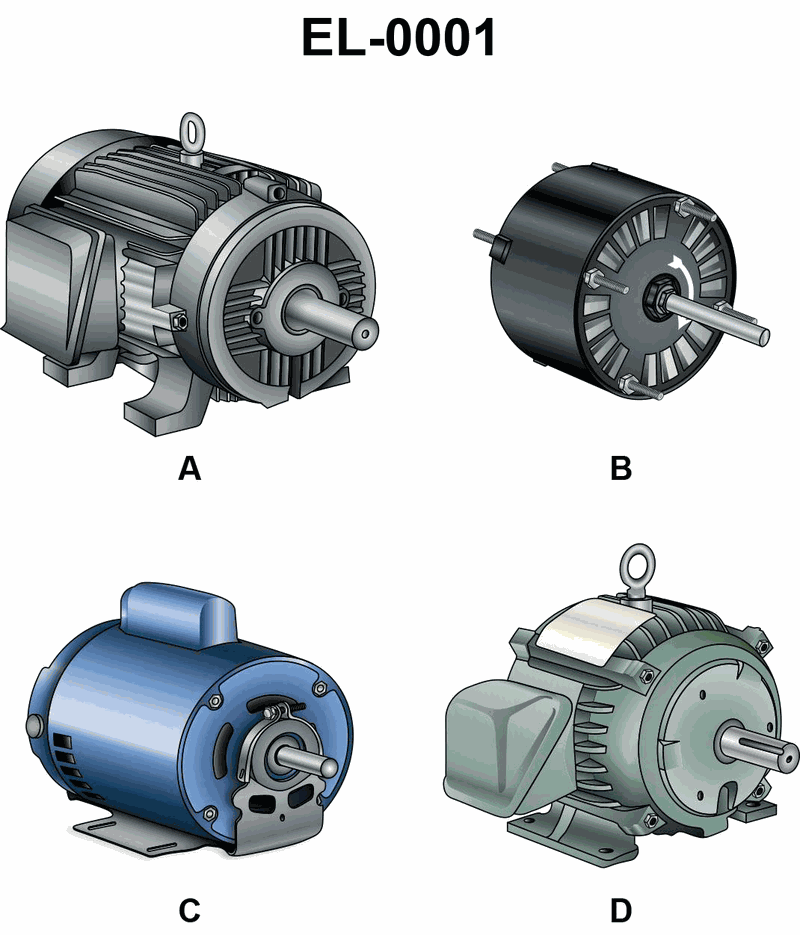

What type of motor enclosure is utilized for the motor labeled "A" in the illustration? Illustration EL- 0001

Back

Question 1 of 20

66636eed28f7522a1c51dcef

What type of motor enclosure is utilized for the motor labeled "A" in the illustration? Illustration EL- 0001

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Look closely at how the housing on motor A is built—are there any visible vent slots or openings where you can see inside the motor? • Recall the difference between open, open drip-proof (ODP), totally enclosed, and totally enclosed, fan-cooled (TEFC) enclosures in terms of how air flows over or through the motor. • Notice any cooling fins and any sign of an external fan or fan shroud on motor A compared to the other motors.

💭 Think About

• Does motor A allow outside air to flow directly through the windings, or is everything sealed so air can only flow around the outside of the frame? • Compare motor A with motor C: which one clearly has vent openings and which one has a solid, ribbed frame? What does that tell you about the enclosure type? • If a motor is totally enclosed but still needs cooling, what feature is often added to move air over the outside of the frame rather than through the inside?

✅ Before You Answer

• Verify whether motor A has any open slots or holes in the frame that would let water or dirt inside. • Check for cooling ribs/fins along the housing and any sign of an external fan cover at the non-drive end of the motor. • Match what you see on motor A to the standard definitions of open, open drip-proof, totally enclosed, and totally enclosed, fan-cooled motors from your study materials before choosing.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

What type of motor enclosure is utilized for the motor labeled "A" in the illustration? Illustration EL- 0001

Open

Totally enclosed

Totally enclosed, fan-cooled

Open, drip-proof
