What type of logic gate is indicated by the...

Question 1 / 270705eccefa5bacbc34ba4d486cd

Question 1 of 270705eccefa5bacbc34ba4d486cd

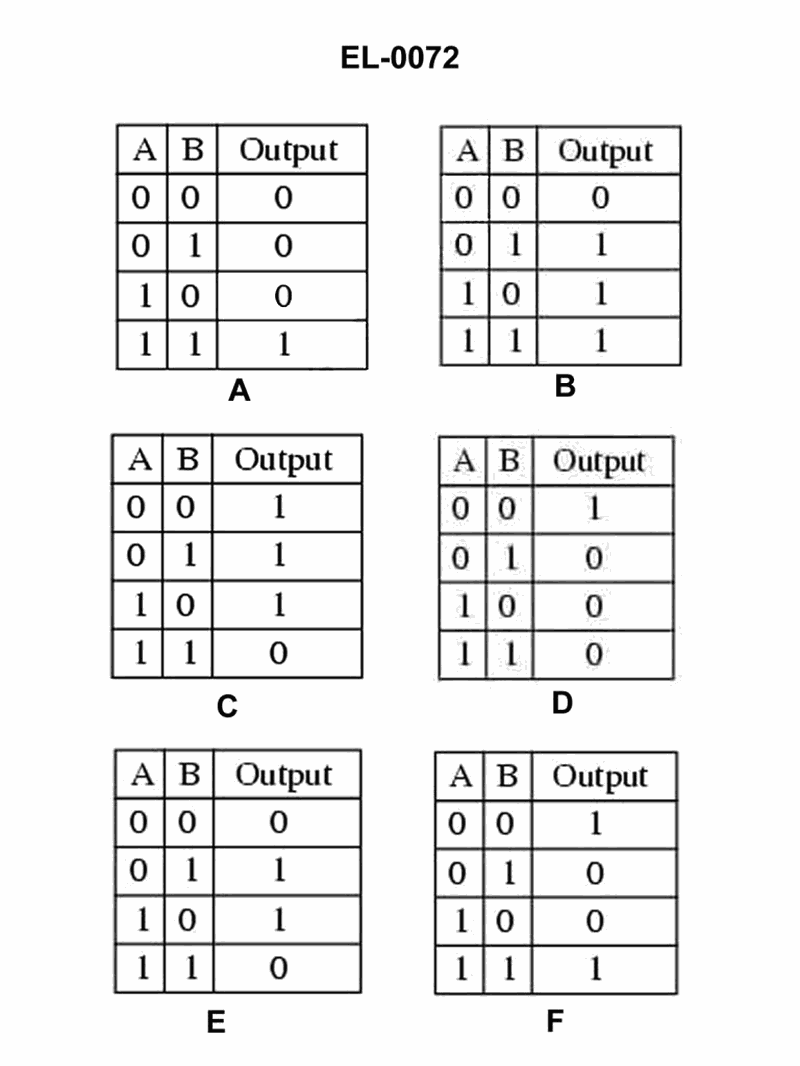

What type of logic gate is indicated by the truth table shown in figure "E" of the illustration? See illustration EL-0072.

Back

Question 1 of 27070

Q

What type of logic gate is indicated by the truth table shown in figure "E" of the illustration? See illustration EL-0072.

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Compare the truth table in figure E with standard two-input logic gate behaviors (AND, OR, XOR, NOR, XNOR). • Notice for which combinations of A and B the output is 1 versus 0. • Think about gates that are true when the inputs are different versus when they are the same.

💭 Think About

• When both A and B are 0, what is the output in table E, and which listed gates behave that way? • When A and B are both 1, what is the output in table E, and how does that compare to a normal OR gate? • Look at the rows where only one input is 1. Which gates in the choices turn on for exactly one high input?

✅ Before You Answer

• Verify which choice produces output 1 only when exactly one input is 1. • Eliminate any gates that produce 1 when both inputs are 1 if that does not match figure E. • Confirm that the selected gate’s standard truth table matches all four rows of table E, not just one or two.

Question 1 of 27070

Q

What type of logic gate is indicated by the truth table shown in figure "E" of the illustration? See illustration EL-0072.

A

OR

B

Exclusive OR

C

NOR

D

Exclusive NOR
