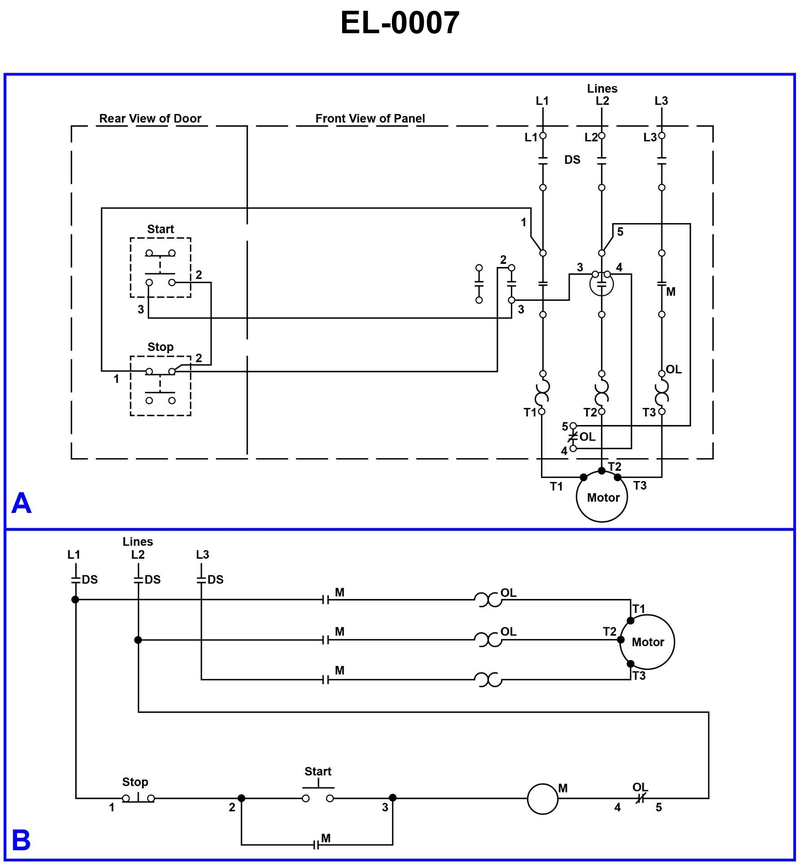

What type of control circuit logic is featured in the electrical schematic diagram for the motor starting circuit shown in figure "B" of the illustration? Illustration EL-0007

Back

Question 1 of 20

66636eed28f7522a1c51dcd2

What type of control circuit logic is featured in the electrical schematic diagram for the motor starting circuit shown in figure "B" of the illustration? Illustration EL-0007

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Difference between low voltage release and low voltage protection in a 3‑wire motor starter control circuit • Purpose of the auxiliary contact labeled M in parallel with the Start pushbutton in figure B • Which options describe control logic versus actual motor starting methods (reduced‑voltage or resistance starting)

💭 Think About

• Look at the control circuit in figure B: if the supply voltage suddenly drops to zero and then comes back while the Stop/Start buttons are left untouched, what will the motor do? • What job does the auxiliary contact marked M (wired around the Start button) perform once the motor is running? • Do you see any components in the power circuit that would limit the motor’s starting current, such as series resistors or special starters, or is this more about how the contactor coil is energized and held in?

✅ Before You Answer

• Identify whether the circuit will automatically restart or stay off after a power failure with the Start button left released. • Confirm that the contact labeled M is a holding (seal‑in) contact for the coil, and notice how that affects restarting after a voltage loss. • Verify that choices C and D describe starting current/voltage methods, while choices A and B describe control circuit behavior during low voltage.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

What type of control circuit logic is featured in the electrical schematic diagram for the motor starting circuit shown in figure "B" of the illustration? Illustration EL-0007

low voltage release

low voltage protection

reduced voltage starting

resistance starting
