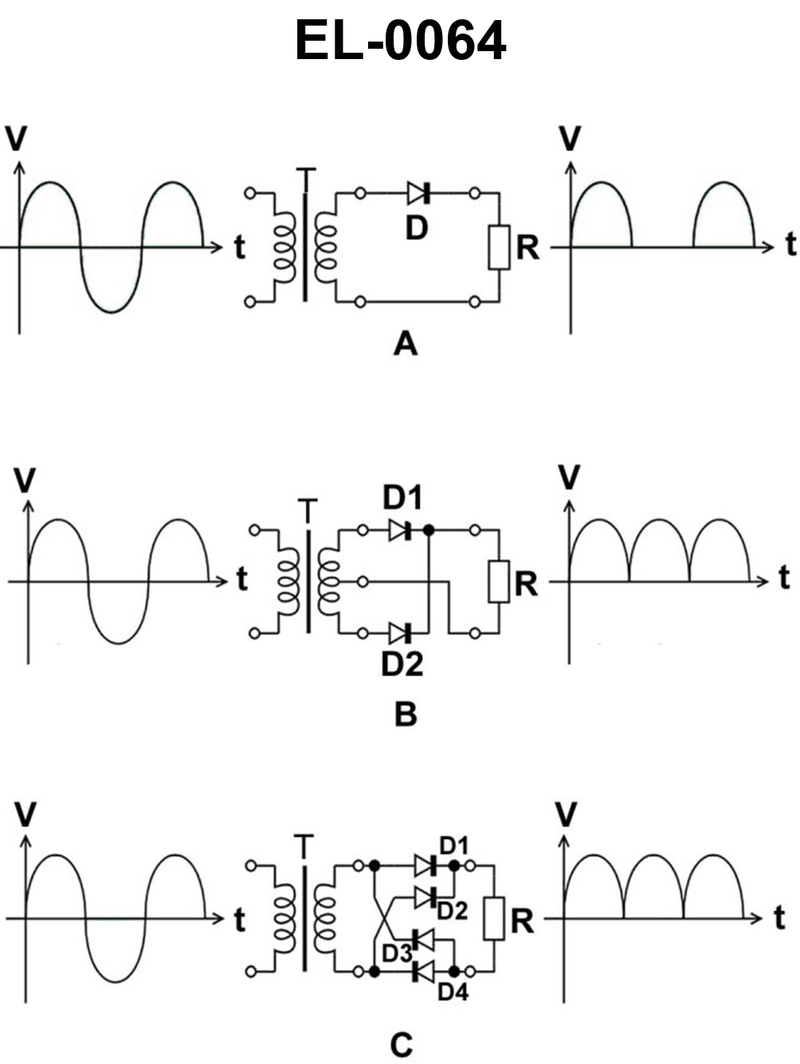

What is the name for the device shown in figure "A" of the illustration? Illustration EL-0064

Back

Question 1 of 20

66636eed28f7522a1c51d80f

What is the name for the device shown in figure "A" of the illustration? Illustration EL-0064

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Compare the number of diodes and transformer connections in A, B, and C. • Look at the output waveform in figure A and notice what happens to the negative half-cycles of the AC input. • Recall the difference between a filter (which smooths DC) and a rectifier (which converts AC to pulsating DC).

💭 Think About

• In figure A, does the circuit conduct during both halves of the AC cycle, or only during one? How does that relate to the type of rectifier? • Which options describe circuits that use more than one diode to utilize both halves of the AC waveform? How does that compare to what you see in A? • Does figure A show any capacitor or inductor that would smooth the voltage into more constant DC, or does it just block one half of the waveform?

✅ Before You Answer

• Verify how many diodes are physically drawn in figure A. • Confirm whether the output waveform in A includes one pulse per input cycle or two pulses per cycle. • Check that a DC filter would normally be drawn with a capacitor and/or inductor after the rectifier, which you may or may not see in figure A.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

What is the name for the device shown in figure "A" of the illustration? Illustration EL-0064

direct current (DC) filter

full-wave bridge rectifier

half-wave rectifier

full-wave rectifier
