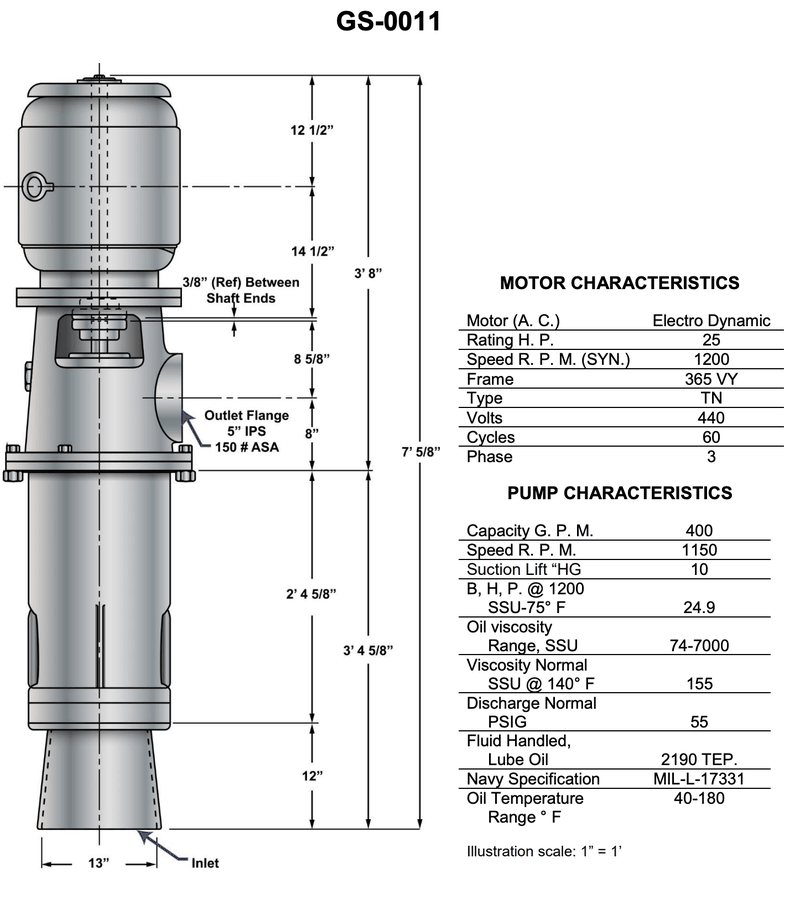

What is the distance between the center of the discharge outlet and the top of the motor illustrated? Illustration GS-0011

Back

Question 1 of 20

5eccef9abacbc34ba4d45066

What is the distance between the center of the discharge outlet and the top of the motor illustrated? Illustration GS-0011

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Use the vertical dimension lines on the right side of the drawing to locate the top of the motor and the centerline of the discharge outlet. • Notice which dimensions are given in feet and inches together (like 3' 8") and which are only in inches (like 8 5/8"). • Think about whether you must add distances from several small dimensions or subtract one dimension from a larger overall dimension to get the distance asked for.

💭 Think About

• First, identify exactly which horizontal reference line passes through the center of the outlet flange. Which dimension(s) on the right side of the figure touch that line? • Next, identify which dimension line shows the height from some lower reference point up to the very top of the motor. How is that related to the line through the outlet center? • Decide whether the distance from the outlet center to the top of the motor is obtained by combining smaller stacked dimensions or by taking the difference between a large overall dimension and a segment of it.

✅ Before You Answer

• Be sure you are measuring from the center of the discharge outlet, not from the top or bottom of the outlet flange. • Confirm you are starting at the very top of the motor housing, not at the coupling or motor base. • Carefully convert any feet-and-inches values into total inches before doing your arithmetic, and double-check your fraction addition/subtraction (e.g., 5/8, 1/2, 3/8).

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

What is the distance between the center of the discharge outlet and the top of the motor illustrated? Illustration GS-0011

34 5/8 inches

35 inches

35 5/8 inches

36 inches
