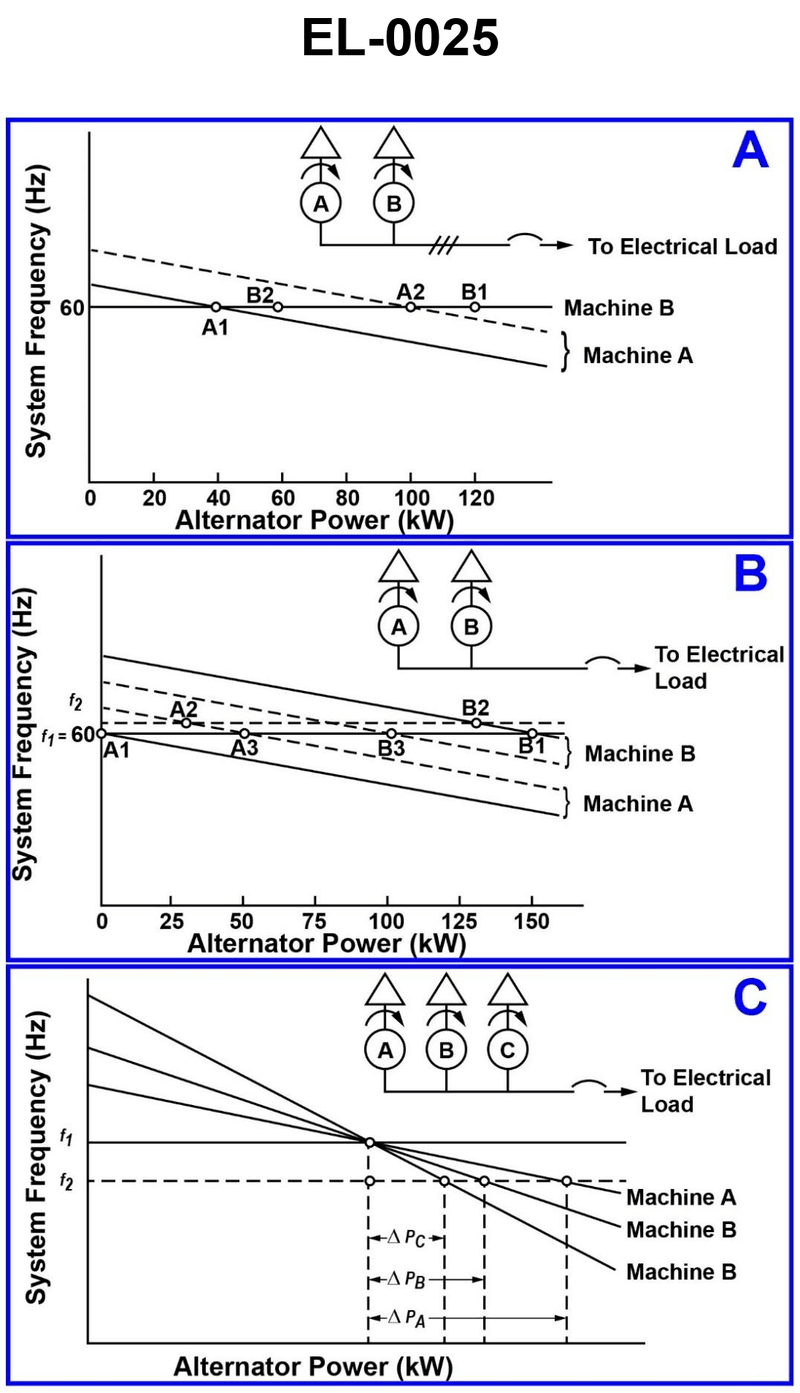

What are the operational characteristics of the two alternators with the speed droop curves shown in figure "A" of the illustration? Illustration EL-0025

Back

Question 1 of 20

66636eed28f7522a1c51d882

What are the operational characteristics of the two alternators with the speed droop curves shown in figure "A" of the illustration? Illustration EL-0025

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Difference between droop and isochronous speed governing for alternators • How frequency (speed) changes as load (kW) increases on the curves for machines A and B • What an isochronous speed characteristic looks like on a frequency vs. load graph

💭 Think About

• Look at machine A’s curve in figure A: as alternator power increases, what happens to system frequency? Does this match droop or isochronous behavior? • Now compare machine B’s curve: does its frequency stay exactly constant with changing load, or does it also change with load? • On a frequency vs. kW graph, which governing mode would be represented by a perfectly horizontal line, and which by a sloping line?

✅ Before You Answer

• For a droop governor, verify that frequency decreases as load increases (a downward‑sloping line). • For an isochronous governor, verify that frequency remains constant with load (a horizontal line). • Confirm whether either machine’s curve is horizontal over the whole load range shown. This tells you which answers you can immediately eliminate.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

What are the operational characteristics of the two alternators with the speed droop curves shown in figure "A" of the illustration? Illustration EL-0025

Machine "A" is a droop machine, while machine "B" is an isochronous machine

Machine "A" and machine "B" are both isochronous machines

Machine "A" is an isochronous machine, while machine "B" is a droop machine

Machine "A" and machine "B" are both droop machines
