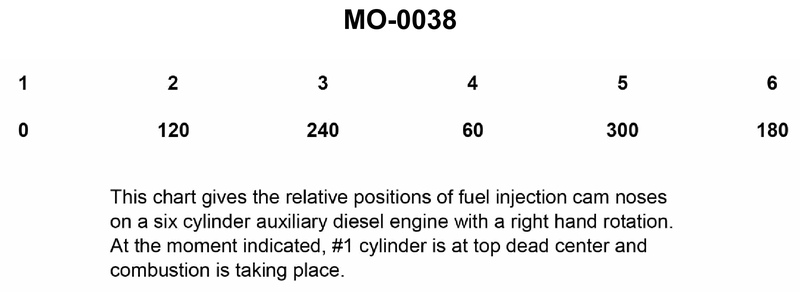

Using the information given in the illustrated table, which of the cylinders listed will fire next? See illustration MO-0038.

Back

Question 1 of 27070

Using the information given in the illustrated table, which of the cylinders listed will fire next? See illustration MO-0038.

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Six-cylinder four-stroke diesel engines usually have evenly spaced firing intervals over 720° of crankshaft rotation • The table shows relative cam nose positions in degrees for each cylinder, with cylinder #1 at 0° and at top dead center on the power stroke • A right-hand rotation means you should follow the degrees in the direction of increasing crank angle to find which cylinder’s cam comes next

💭 Think About

• If #1 is firing at 0°, how many degrees apart will the firing events be in a six-cylinder four-stroke engine over 720° of crank rotation? • Re‑arrange the cylinders in order of the degree values shown (0°, 60°, 120°, 180°, 240°, 300°). In that ordered list, which cylinder immediately follows cylinder #1? • How does the stated right‑hand rotation affect whether you move toward increasing or decreasing degree values when looking for the next firing cylinder?

✅ Before You Answer

• Confirm that firing intervals are equal for all six cylinders over one full 720° cycle • Make sure you list the cylinders in order of their degree positions, not in numerical cylinder order • Before choosing, double‑check that the cylinder you pick is the next higher degree value after 0° in the direction of rotation described
