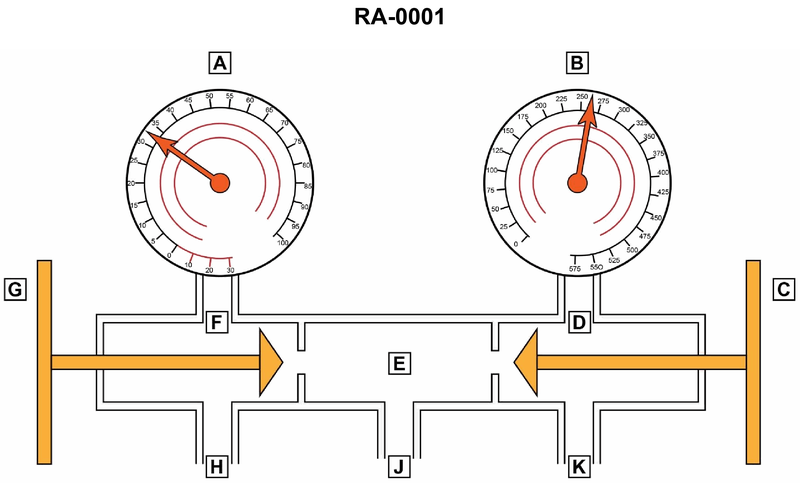

Using the device shown in the illustration, which of the following statements is true when adding refrigerant as a vapor to the low side of the refrigeration system? Illustration RA-0001
