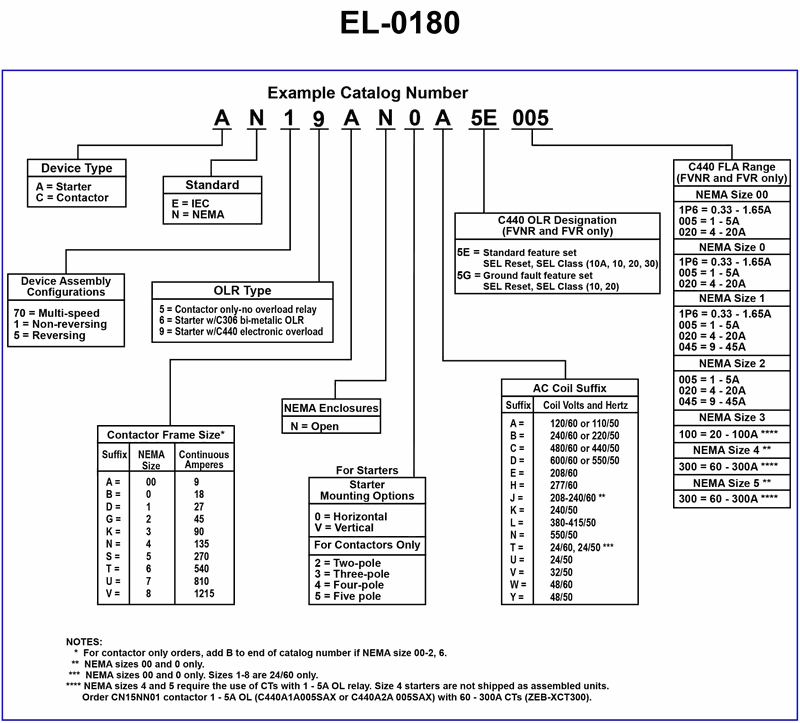

Using the catalog selection chart shown in Illustration EL-0180, determine the correct catalog number for a motor starter that meets the following criteria: NEMA Open enclosure 3-pole Rated at 45 continuous amperes Vertically mounted Electronic overload relay-Ground fault feature set Reversing starter Operating coil rated at 24 VAC/60 Hz
