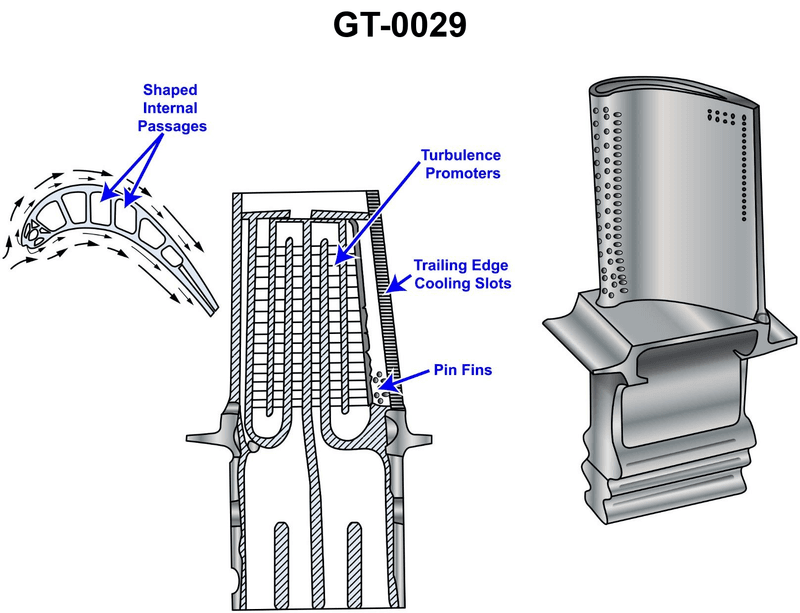

To prevent overheating of the illustrated turbine blade, which of the following fluids is circulated through it via the shaped internal passages? Illustration GT-0029

Back

Question 1 of 20

66636eed28f7522a1c51e227

To prevent overheating of the illustrated turbine blade, which of the following fluids is circulated through it via the shaped internal passages? Illustration GT-0029

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Gas turbine blade cooling methods in the turbine section • Difference between internal cooling and air flowing around the blade externally • Which working fluid in a gas turbine remains clean, non‑corrosive, and available at high pressure and temperature for reuse as cooling air

💭 Think About

• Look at the illustration: does the fluid seem to enter from inside the rotor/disc and then exit through small holes in the blade surface, or does it wash over the outside only? • Of the four choices, which fluid is already present at high pressure in the engine and can be safely routed through very small passages close to extremely hot metal? • Which fluids, if leaked from these internal passages into the hot gas path, would create serious problems such as fires, corrosion, or blade erosion?

✅ Before You Answer

• Verify which working fluid is normally tapped from the compressor specifically for cooling hot‑section components • Eliminate options that would be liquid in these conditions and consider what phase the coolant must be to pass through tiny holes and films • Consider whether the term "external" in one option matches the clearly internal passages labeled in the illustration

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

To prevent overheating of the illustrated turbine blade, which of the following fluids is circulated through it via the shaped internal passages? Illustration GT-0029

External compressed air.

Bleed air.

Cooling oil.

Cooling water.
