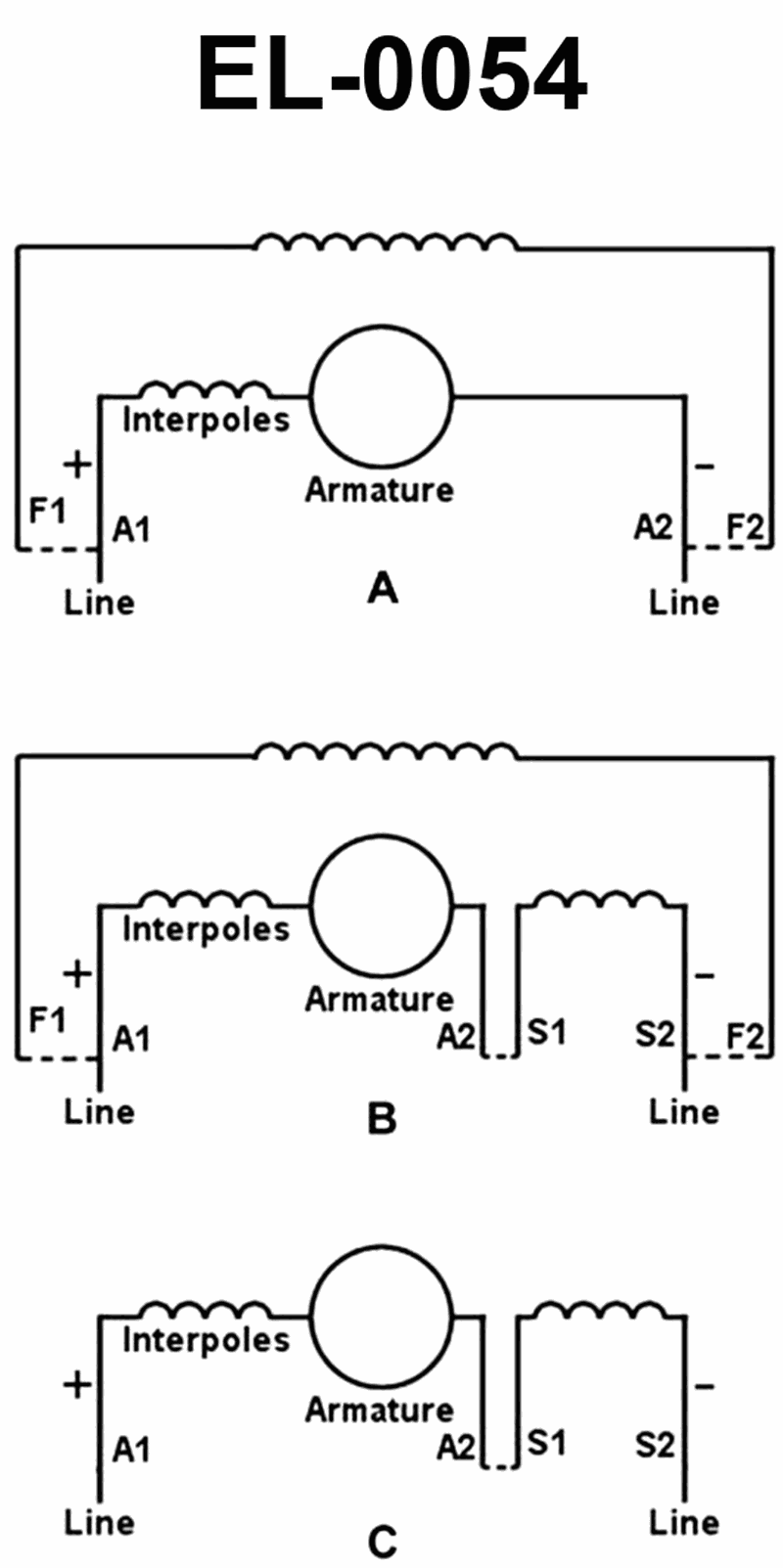

The wiring diagram found in figure "C" of the illustration represents what type of DC motor? Illustration EL-0054

Back

Question 1 of 20

66636eed28f7522a1c51dd7a

The wiring diagram found in figure "C" of the illustration represents what type of DC motor? Illustration EL-0054

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Identify whether the field winding is in series or parallel with the armature in each diagram • Understand the difference between series, shunt, and compound DC motors • For compound motors, distinguish between long shunt and short shunt connections

💭 Think About

• Trace the current path from the positive line terminal through the armature and field windings in figure C. Which windings does the current pass through one after another? • Ask yourself: is there any field winding connected directly across the line (in parallel with the armature), or are all the field windings in the same series path as the armature? • Compare the connection of the series field (S1–S2) in figure C with that in figure B. How does its position relative to the armature and line terminals change the motor type description?

✅ Before You Answer

• Verify whether any field winding is directly across the supply (this would be the shunt field) • Confirm whether the S1–S2 series field is in series with the armature only, or with both armature and shunt field, which distinguishes long vs short shunt • Make sure you can clearly label which winding in the diagram is the series field and which, if present, is the shunt field before choosing your answer

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

The wiring diagram found in figure "C" of the illustration represents what type of DC motor? Illustration EL-0054

shunt wound

compound wound with long shunt

series wound

compound wound with short shunt
