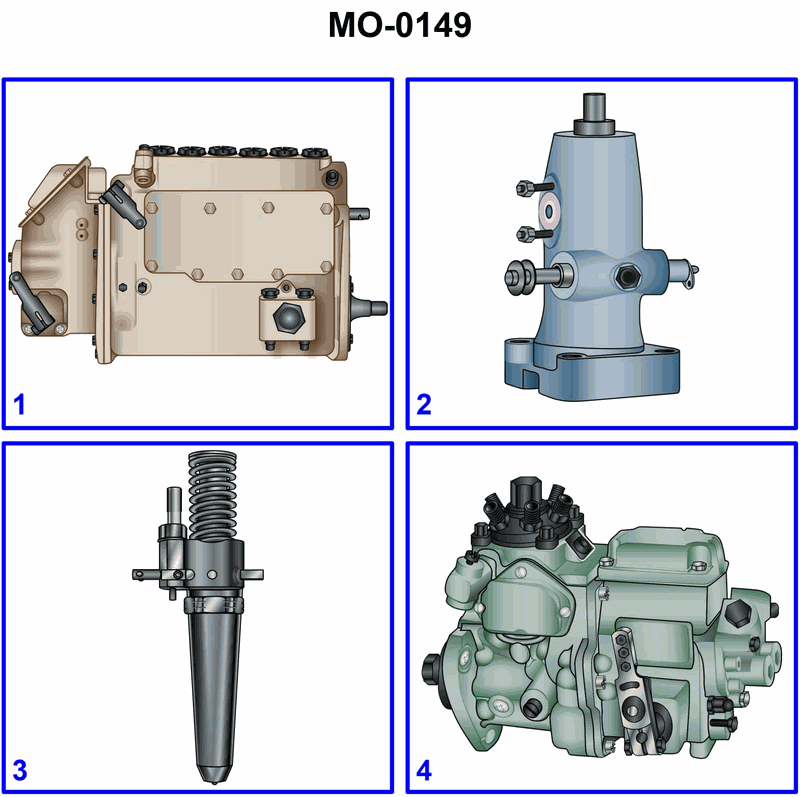

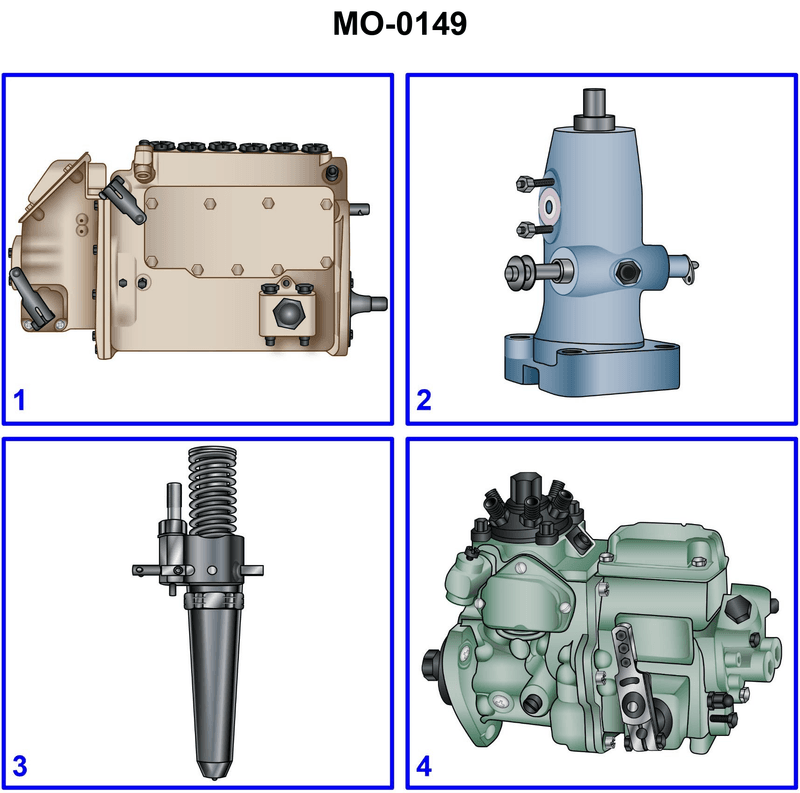

The tractor tug to which you are assigned has diesel generators fitted with a fuel injection system that have a complete absence of high pressure fuel lines. Which figure of the illustration represents the most likely type of fuel injection equipment used? Illustration MO-0149
