The top, front, and right side views of...

Study

Question 1 of 205eccef9abacbc34ba4d450a3

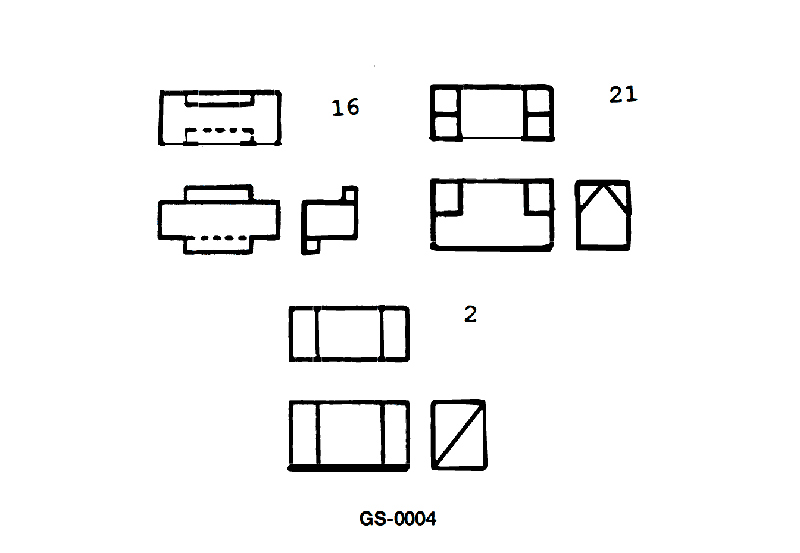

The top, front, and right side views of three different objects are shown in the illustration. In which object are all three views correct and complete? See illustration GS-0004.

Back

Question 1 of 20

5eccef9abacbc34ba4d450a3

The top, front, and right side views of three different objects are shown in the illustration. In which object are all three views correct and complete? See illustration GS-0004.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Orthographic projection – how top, front, and right-side views relate to each other in position and size • Alignment of edges and corners between the three views (shared widths, heights, and locations of features) • Use of hidden lines (dashed) to show features that are not visible from a particular view

💭 Think About

• For each numbered object, do the edges and features in the top view line up vertically and horizontally with the same features in the front and right-side views? • Are there any corners, cut‑outs, or sloping faces that appear in one view but have no matching effect in the other two views? • Where you see a hidden (dashed) line in one view, can you find the solid feature that creates it in at least one of the other views?

✅ Before You Answer

• Make sure the widths (left‑to‑right) in the front and top views match and line up correctly. • Check that each visible block or notch in one view corresponds to the correct outline or hidden feature in the other views. • Confirm that no view is missing a visible edge that must appear because of a step, notch, or slope shown in another view.
