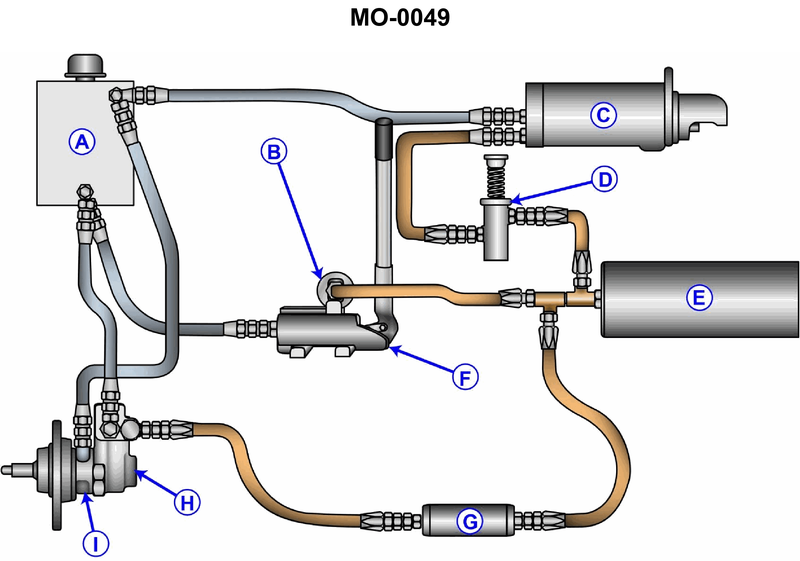

The starter control valve in the hydraulic system shown in the illustration is malfunctioning. Before removing the valve, you must first __________. Illustration MO-0049

Back

Question 1 of 20

66636eef28f7522a1c5202c4

The starter control valve in the hydraulic system shown in the illustration is malfunctioning. Before removing the valve, you must first __________. Illustration MO-0049

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Stored energy in hydraulic accumulators and why it is dangerous when working on the system • Function of component E in the illustration and what kind of device it is • Proper safety procedure before disconnecting or removing any control valve in a pressurized hydraulic system

💭 Think About

• Look at line connections leading into and out of the starter control valve (F). Which component in the system could still hold high pressure even after the pump is secured? • If you simply drained the reservoir (A), would that automatically remove pressure from all parts of the system, especially from E? Why or why not? • Consider what would happen to the mechanic standing at F if E is still fully charged when a line or fitting is loosened.

✅ Before You Answer

• Identify component E and confirm whether it is able to store pressure even with the pump stopped • Verify which action directly ensures no trapped pressure remains at F before removal • Eliminate any options that deal only with fluid level (like the reservoir) or that would actually make the system less controlled or more hazardous during maintenance

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

The starter control valve in the hydraulic system shown in the illustration is malfunctioning. Before removing the valve, you must first __________. Illustration MO-0049

drain the reservoir

remove all plugs from the system

bleed off all accumulator pressure in "E"

ensure that the accumulator piston is in the charged position
