The SS AMERICAN MARINER has the liquid load...

Study

Question 1 of 2066636eec28f7522a1c51cbb1

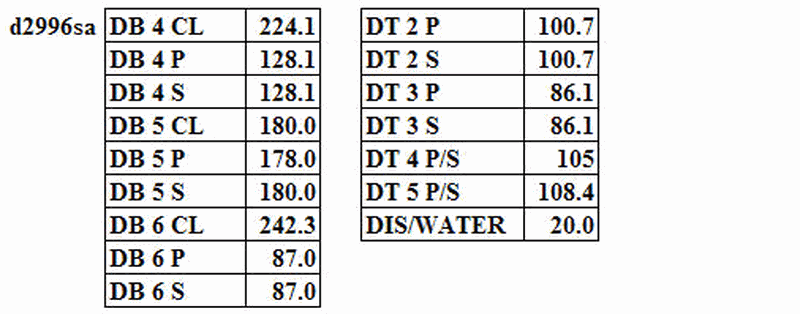

The SS AMERICAN MARINER has the liquid load shown in table ST-0093 below. Use the white pages of The Stability Data Reference Book to determine the LCG-FP of the liquid load.

Back

Question 1 of 20

66636eec28f7522a1c51cbb1

The SS AMERICAN MARINER has the liquid load shown in table ST-0093 below. Use the white pages of The Stability Data Reference Book to determine the LCG-FP of the liquid load.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Using the Stability Data Reference Book white pages to find individual tank LCGs from the forward perpendicular (FP) • Calculating a combined LCG using the moments method: total moment ÷ total weight • Recognizing that port and starboard tanks at the same frame share the same LCG and their weights can be combined before finding the total moment

💭 Think About

• Which table in the white pages tells you the LCG from FP for each specific tank (e.g., DB 4 CL, DT 3 P, etc.)? • Once you have each tank’s weight and LCG, how do you form the moment about FP for that tank, and how are all these moments combined? • How does the presence of both port and starboard tanks at the same longitudinal position affect your total moment and the final LCG?

✅ Before You Answer

• Verify that you are using LCG from FP, not from midships or another reference • Double‑check that every tank listed in the question is included in your total weight and total moment calculations • Confirm that port and starboard tanks at the same location are treated with the same LCG and that their weights are both included before dividing total moment by total weight
