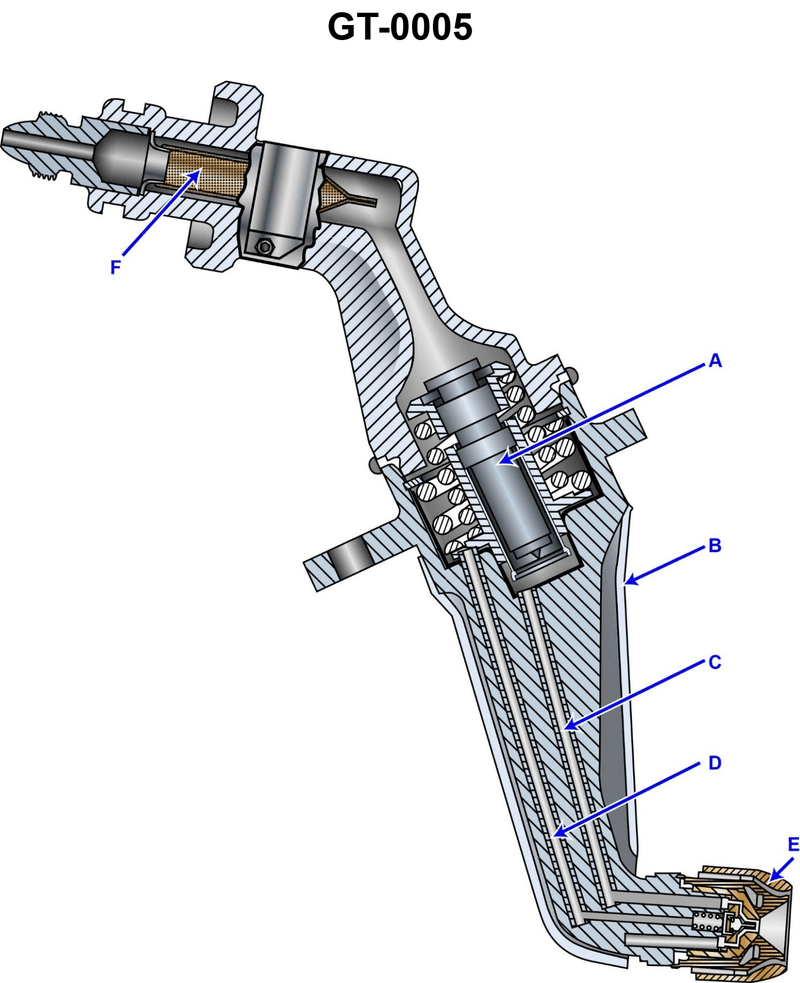

The secondary passages on the gas turbine engine fuel nozzles shown in the illustration are designed to open at approximately what pressure? Illustration GT-0005
