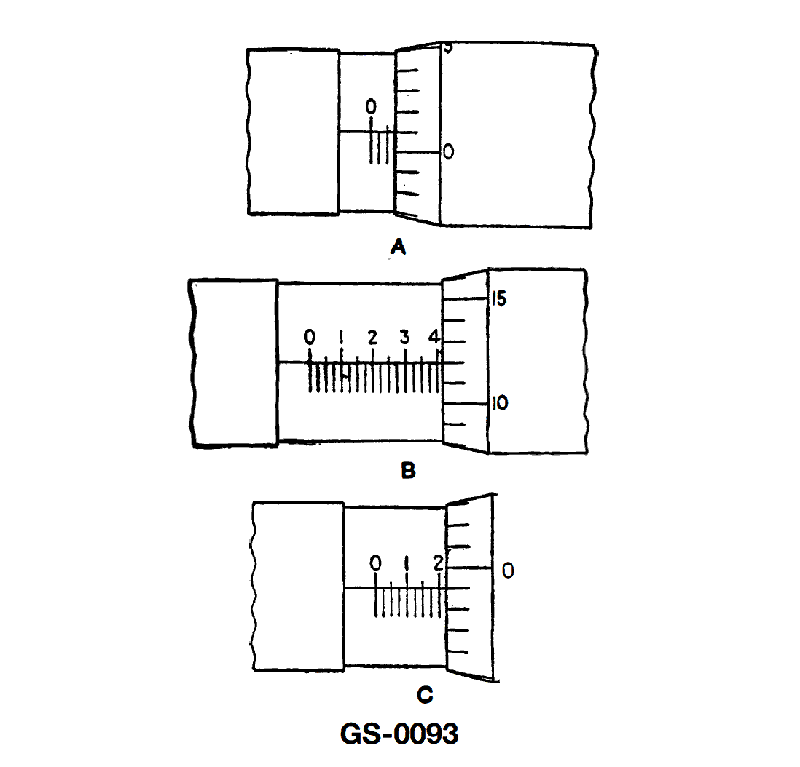

The reading on the micrometer scale shown in figure "C" in the illustration is __________. See illustration GS-0093.

Back

Question 1 of 20

5eccef9bbacbc34ba4d45246

The reading on the micrometer scale shown in figure "C" in the illustration is __________. See illustration GS-0093.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• How to read the sleeve (barrel) scale on an inch micrometer (what each numbered and unnumbered line is worth) • How to read the thimble scale and convert its divisions into thousandths of an inch • How to add the sleeve reading and thimble reading to get the total measurement

💭 Think About

• First, look only at the sleeve in figure C: up to what last full graduation mark has the thimble edge passed? What value in inches does that represent? • Next, find which thimble line lines up exactly with the horizontal reference line on the sleeve. How many thousandths of an inch is that? • Finally, add your sleeve value and thimble value. Which choice matches that total most closely?

✅ Before You Answer

• Be sure you know that on most inch micrometers each numbered sleeve mark is 0.100 inch and each short line between numbers is 0.025 inch • Confirm that each division on the thimble equals 0.001 inch • Double‑check that you are using the last visible full sleeve mark to the left of the thimble edge, not the mark partially covered by the thimble
