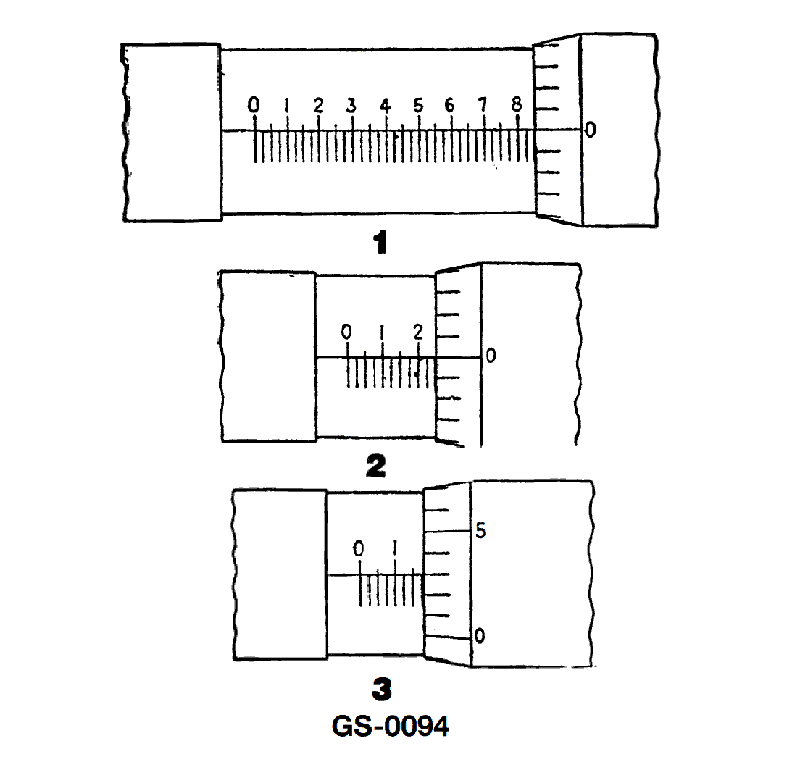

The reading on the micrometer scale shown in figure "3" in the illustration is __________. See illustration GS-0094.
