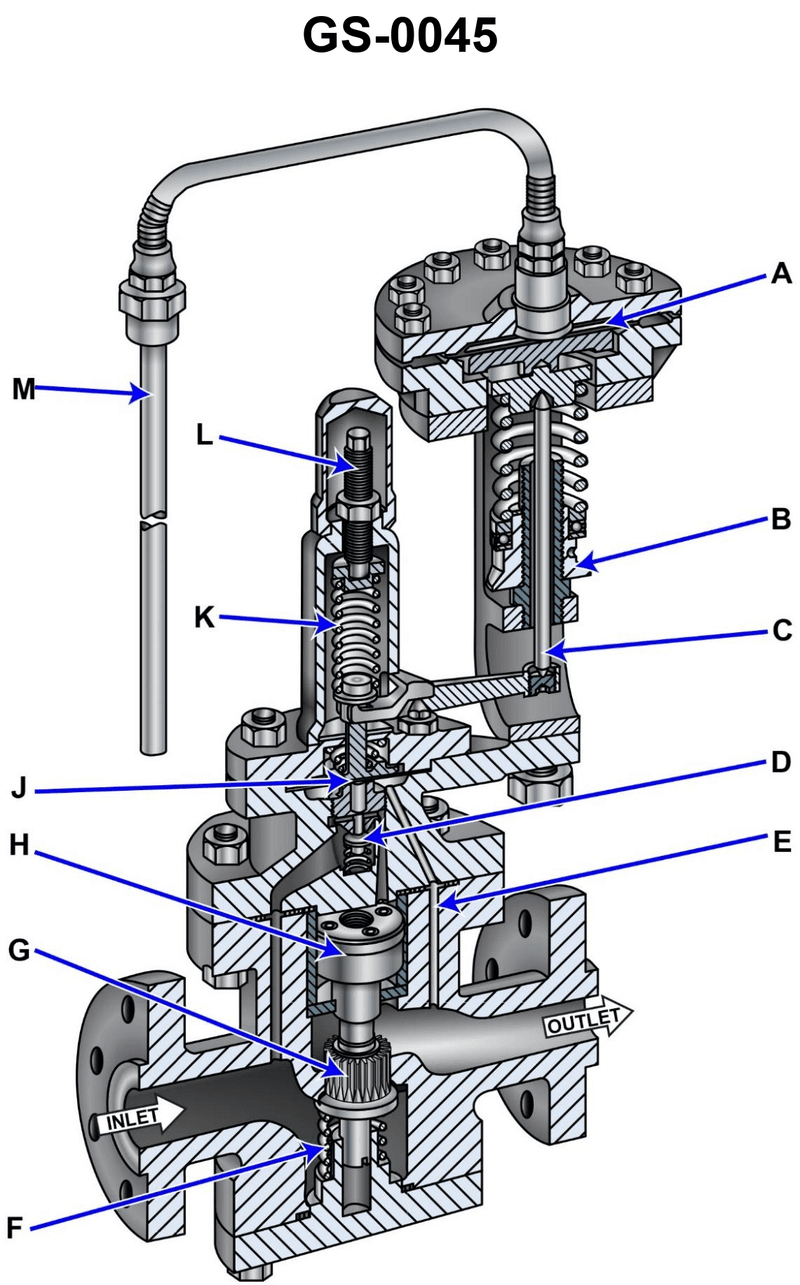

The purpose of the vertical 'grooves' machined on the main valve "G", in the spring loaded temperature regulating valve shown in the illustration, is to __________. See illustration GS-0045.
