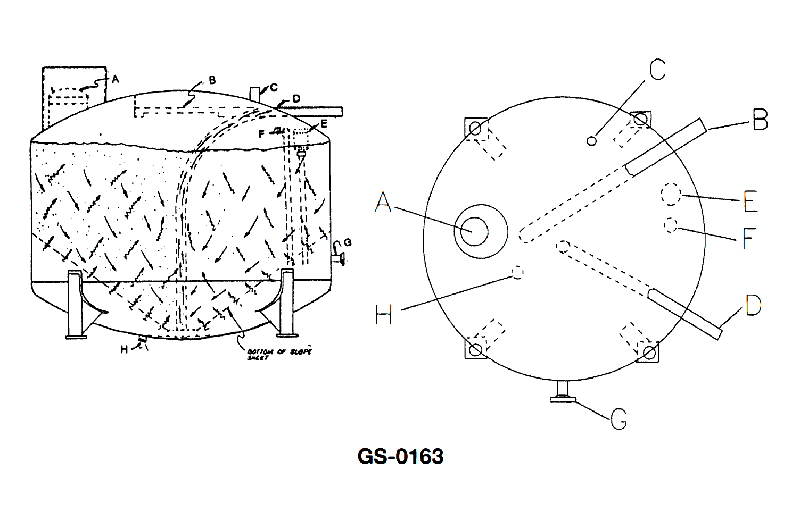

The purpose of the component labeled "E" in the illustration is to __________. See illustration GS-0163.
