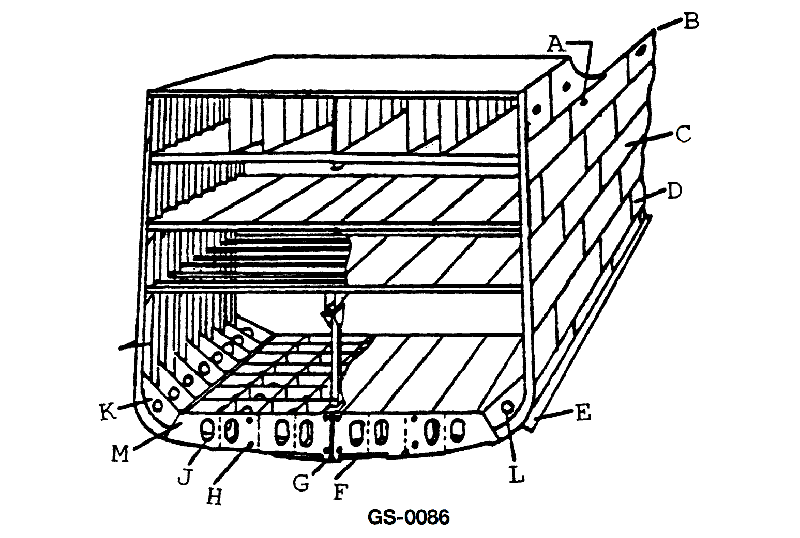

The method of framing shown in the illustration utilizes the type of construction termed __________. See illustration GS-0086.
