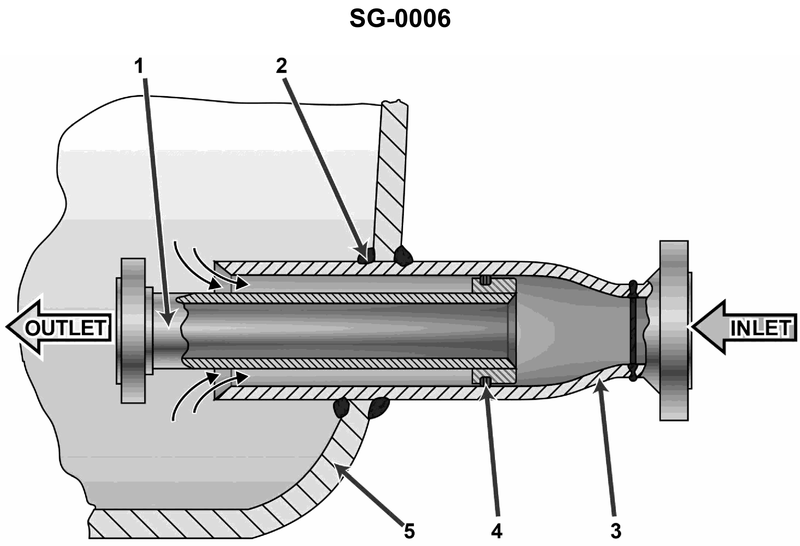

The main purpose of the boiler steam drum component shown in the illustration is to __________. Illustration SG-0006

Back

Question 1 of 27070

The main purpose of the boiler steam drum component shown in the illustration is to __________. Illustration SG-0006

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Boiler steam drum functions: separating steam from water and delivering dry steam to the outlet • How internal fittings (dry pipes, separators, baffles) help remove entrained water droplets from steam • Meaning of priming in boilers and what design features reduce it

💭 Think About

• Look at the flow arrows in the illustration: what happens to the mixture as it enters this component, and how does the shape and direction change affect any water droplets in the steam? • Which of the options describes a function that directly improves steam quality inside a steam drum, rather than protecting the drum shell or supports? • Think about normal boiler operation: which of these problems must the steam drum internals continuously control whenever steam is being generated?

✅ Before You Answer

• Identify how the component changes velocity and direction of the steam/water mixture and where separated water would go. • Decide which listed function is primarily about steam dryness and carryover, not mechanical strength or support. • Confirm that the purpose you select is something that must operate all the time during steaming, not just during abnormal events like sudden pressure surges.

Question 1 of 27070

The main purpose of the boiler steam drum component shown in the illustration is to __________. Illustration SG-0006

permit expansion during pressure surges

reduce vibration

prevent thermal shock

reduce the possibility of priming
