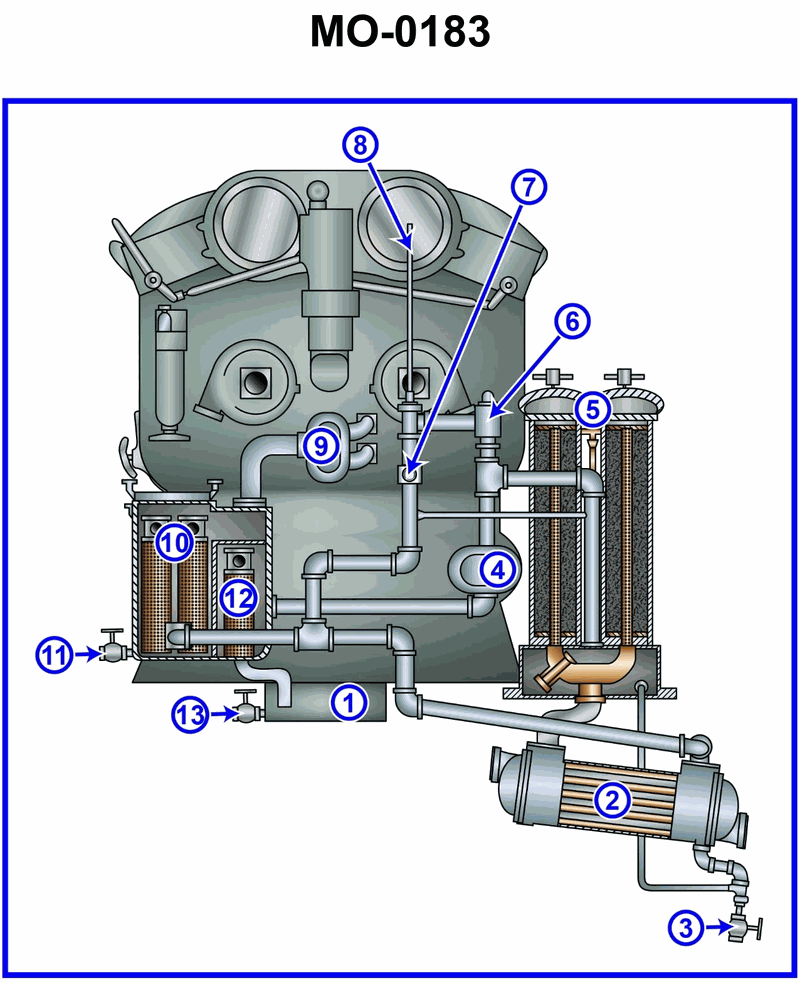

The main propulsion engines onboard your harbor tug use a lubricating oil system as shown in the illustration. What item number represents the scavenging lube oil pump? Illustration MO-0183
