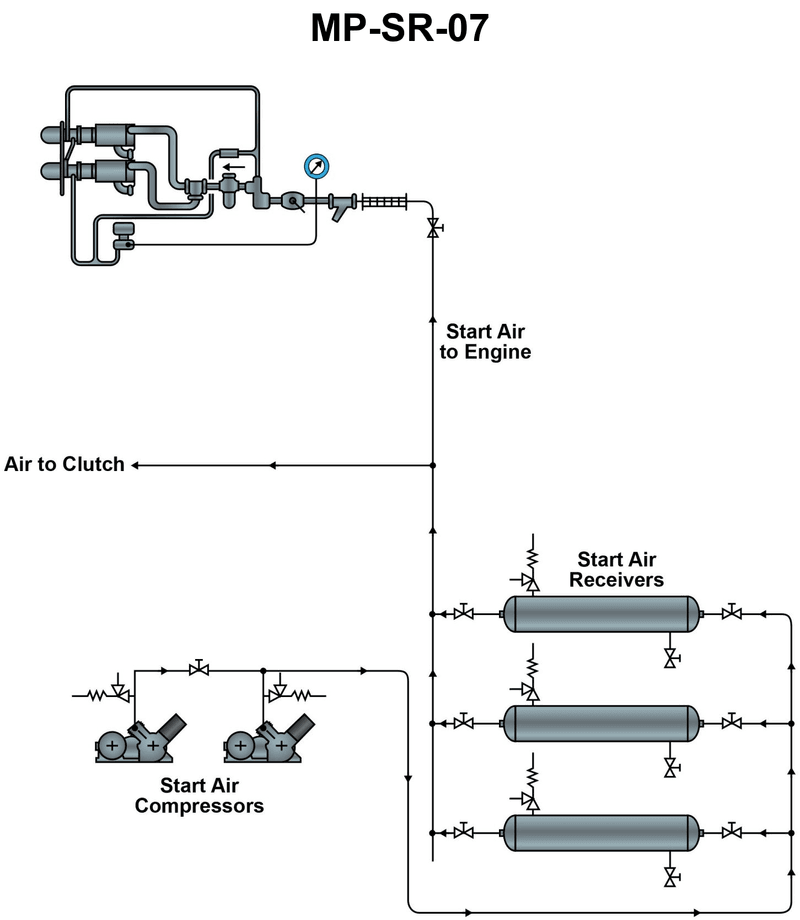

The main propulsion diesel engines fitted on your salvage tug are started with compressed air using the system illustrated. What is the starting method used with this system? Illustration MO-0199
