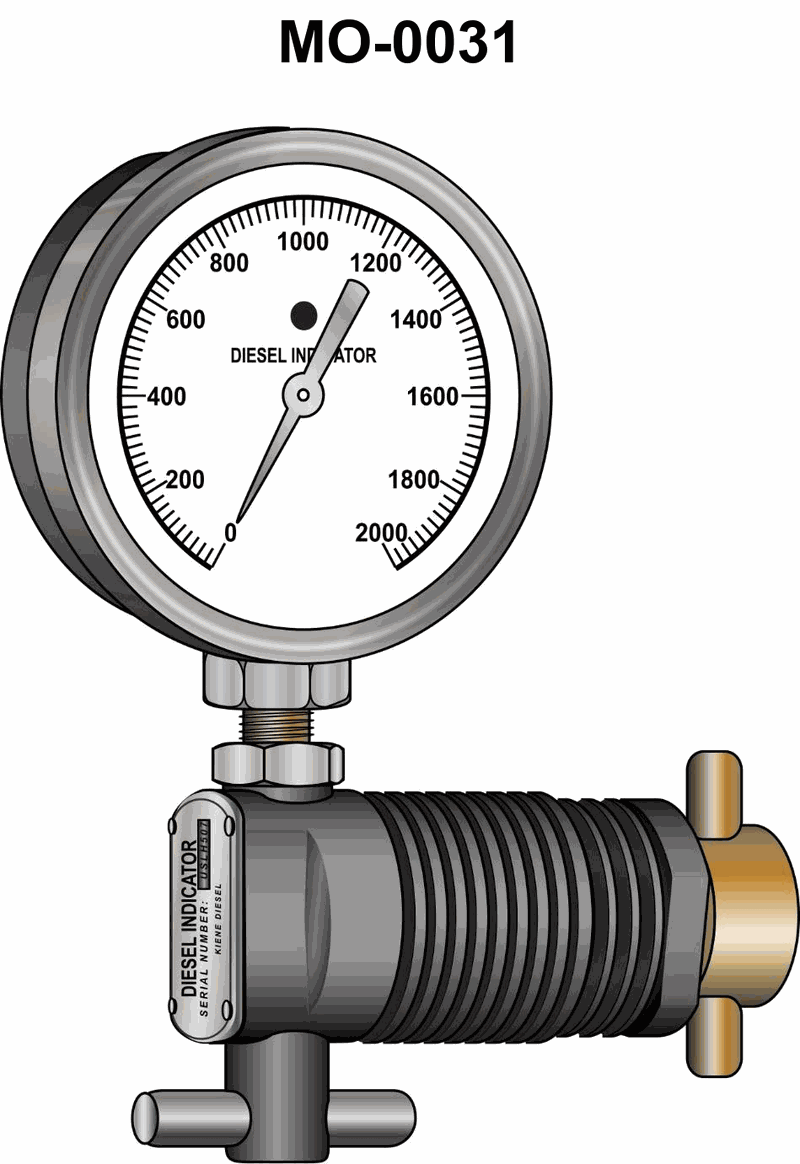

The instrument shown in the illustration would be used on a diesel engine to __________. Illustration MO- 0031
