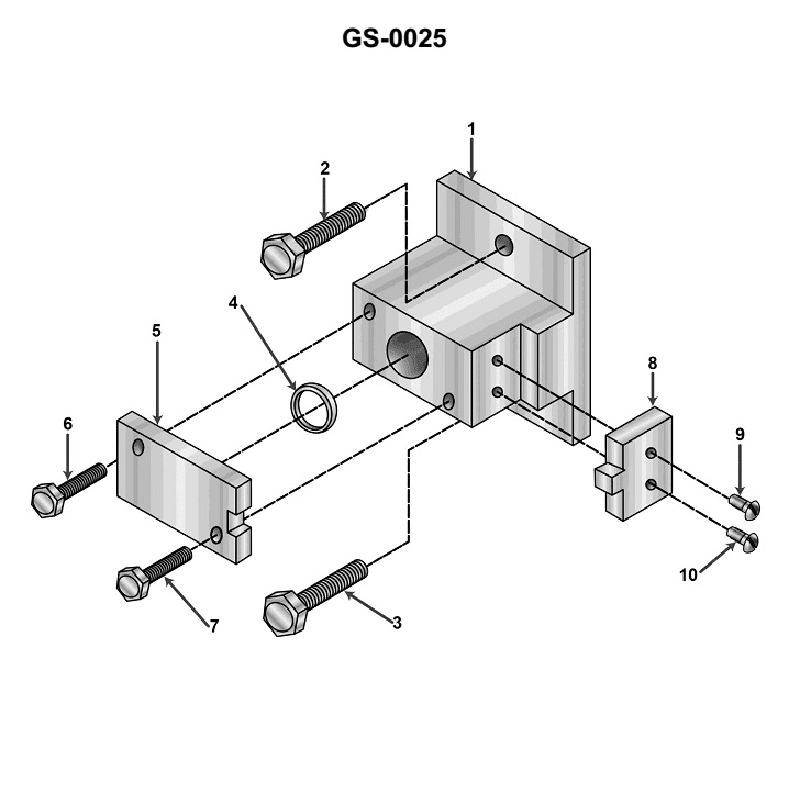

The illustration shown is called an exploded drawing and is intended to show the __________. See illustration GS-0025.
