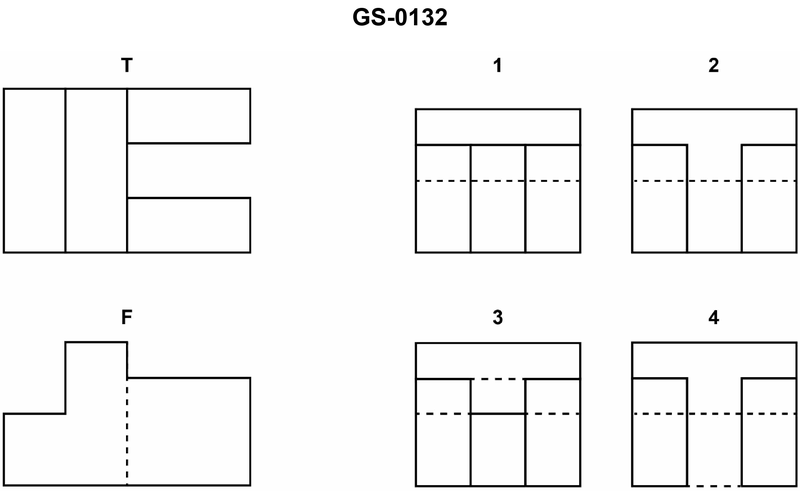

The illustrated drawing shows a correct front "F" and top "T" view of an object. Of the views labeled "1","2","3", and "4", the one that correctly represents the right side view for a third angle projection is_______. Illustration GS-0132

Back

Question 1 of 20

66636ef128f7522a1c522fb2

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Third-angle projection layout (where the right-side view is placed in relation to the front view) • How the heights in the front view must exactly match the heights in the right-side view • How the depths seen in the top view become left‑to‑right dimensions in the right-side view, including which parts are hidden (dashed line)

💭 Think About

• From the front view F, how many distinct height levels does the object have, and where are the vertical edges? Sketch that profile, then look for the option whose outline matches it exactly. • From the top view T, which parts of the object stick out farther toward you and which are recessed? When you look from the right side, which of those depths will you see as solid lines, and which should be hidden (dashed)? • Compare each numbered option: does its dashed line represent a surface that would be behind the visible faces when viewed from the right, based on F and T?

✅ Before You Answer

• Verify that the chosen view has the same total height and same step heights as the front view F. • Verify that the left‑to‑right widths in the side view correspond to the front‑to‑back depths in the top view T. • Check that the dashed line is in the only place where a lower/recessed surface would be hidden from a right‑side viewpoint, given the shapes shown in F and T.
