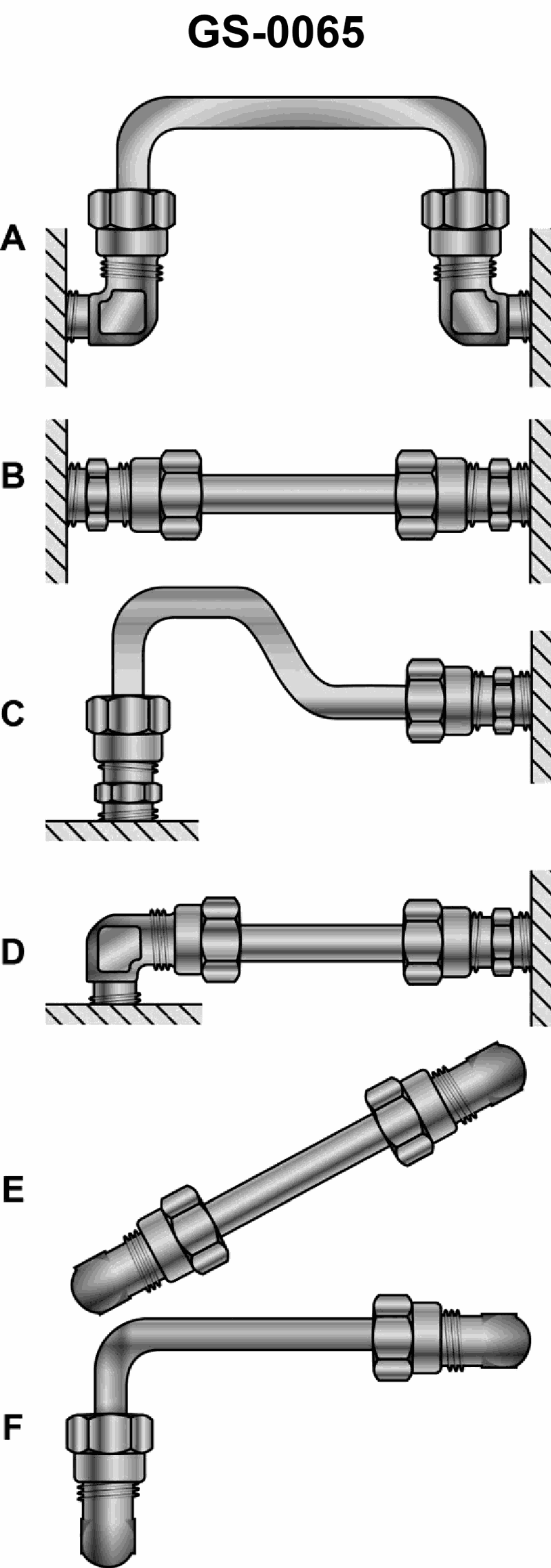

The hydraulic tubing installation shown as figure "D" is INCORRECT and will probably leak when in operation because the tubing __________. Illustration GS-0065
