Question 1 of 205eccef9dbacbc34ba4d45e6d

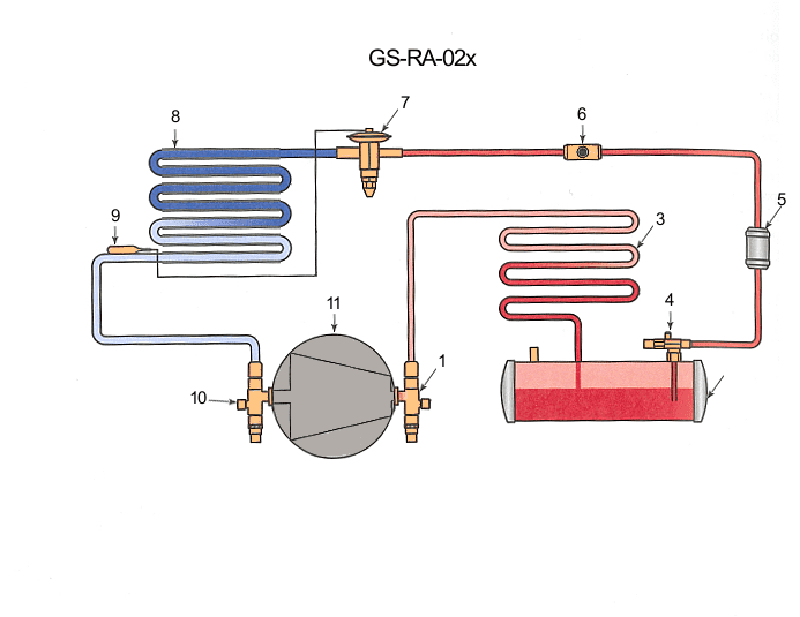

The high pressure side of the refrigeration system, as shown in the illustration, in the order of flow, is located between what two components? See illustration GS-RA-02.

Back

Question 1 of 20

5eccef9dbacbc34ba4d45e6d

The high pressure side of the refrigeration system, as shown in the illustration, in the order of flow, is located between what two components? See illustration GS-RA-02.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Identify the compressor discharge side and the evaporator outlet/suction side on the schematic. • Recall that the high‑pressure side of a simple vapor‑compression system runs from the compressor discharge to the inlet of the expansion valve. • Follow the direction of refrigerant flow and note where color changes (red to blue) indicate high vs. low pressure lines.

💭 Think About

• Starting at the compressor, which numbered component does the hot gas first flow through on its way toward the expansion device? • At what numbered component does the pressure drop suddenly from high to low in this system? How does that help you choose the correct endpoints? • Compare the answer choices to the actual order of components in the high‑pressure circuit— which pair matches both the correct start and end and the correct flow direction?

✅ Before You Answer

• Be sure you have correctly identified the compressor and the expansion valve/ throttling device by their numbers. • Verify the flow direction shown by the piping and coil layout; the pair you pick must go from compressor discharge toward the expansion device, not backwards. • Confirm that every component between your chosen start and end points is colored as the high‑pressure (liquid/hot gas) side, with the color/pressure change occurring only at the expansion device.
