The harbor tug to which you are assigned has...

Question 1 / 2066636eef28f7522a1c51fc99

Question 1 of 2066636eef28f7522a1c51fc99

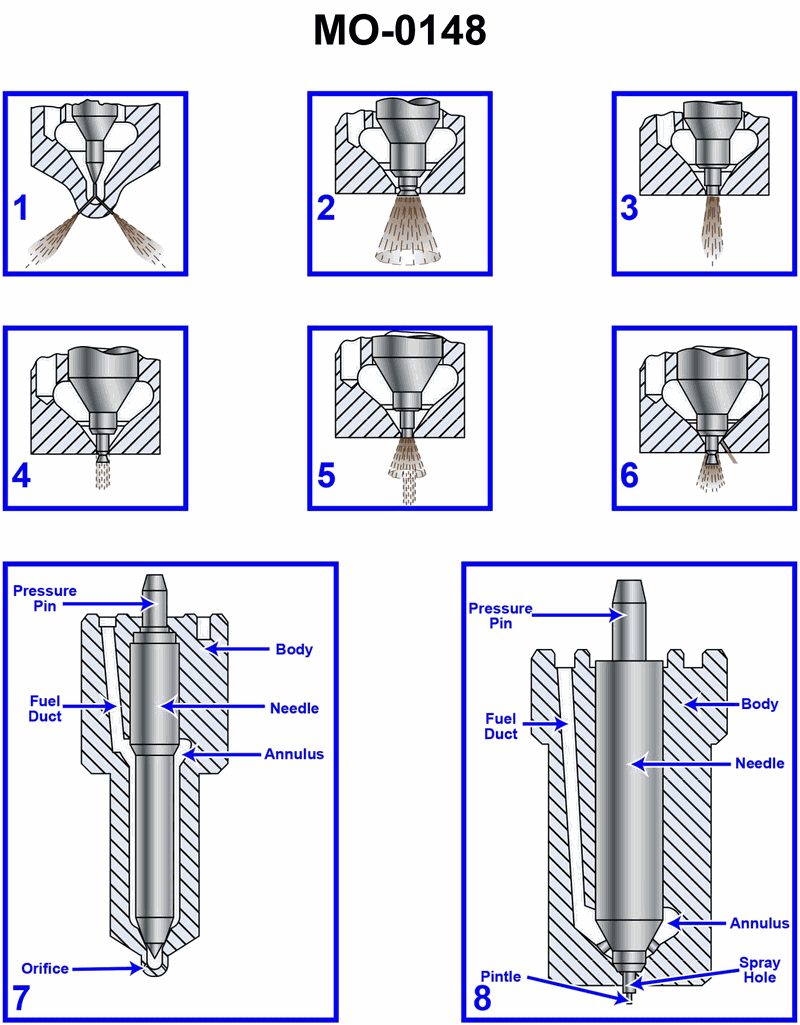

The harbor tug to which you are assigned has main engines fitted with open type combustion chambers featuring direct injection. Of the listed figures below found in the illustration, which figure represents the most likely type of injector nozzle type? Illustration MO-0148

Back

Question 1 of 20

66636eef28f7522a1c51fc99

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Relationship between open type combustion chambers and the required fuel spray pattern in direct injection diesels • Differences between multi‑hole (orifice) nozzles, single‑hole / pencil nozzles, and pintle nozzles as shown in the illustration • How the spray cone shape and number of jets in figures 1–4 would affect air–fuel mixing in an open chamber

💭 Think About

• Which nozzle style in figures 1–4 would give the best distribution of fuel throughout a large, open combustion space without walls or a precombustion chamber to contain the spray? • For open chamber direct injection, do we usually want fuel concentrated in one narrow jet, or broken up into several fine jets or a wide cone? Match that requirement to one of the illustrated spray patterns. • Look at figures 7 and 8: which cross‑section corresponds to a multi‑hole orifice nozzle versus a pintle nozzle, and which small figure (1–4) matches that multi‑hole spray?

✅ Before You Answer

• Identify which of figures 1–4 clearly shows multiple distinct spray streams or a finely atomized wide cone, rather than a single solid jet. • Confirm which nozzle type is normally specified for open chamber, direct‑injection marine diesels in your engineering texts (usually a form of multi‑hole orifice nozzle). • Make sure the figure you select for the answer has a spray pattern that would mix well with air across the whole cylinder volume, not just in one small area.
