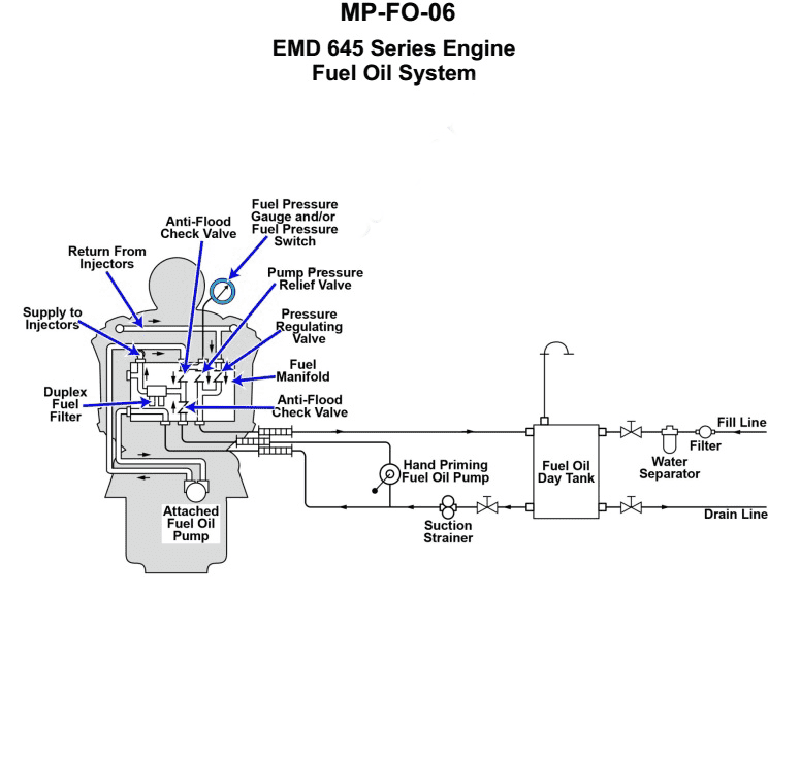

The harbor tug to which you are assigned has a main engine fuel system as shown in the illustration. Besides preventing the attached fuel oil pump and the hand priming fuel oil pump from discharging through the other, what other purpose do the anti-flood check valves serve? Illustration MO-0152
