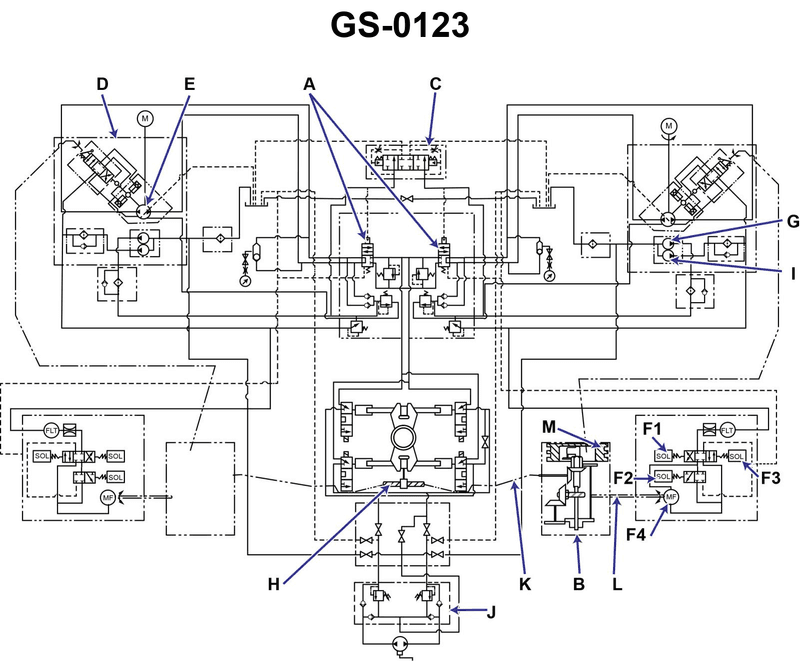

The follow-up mechanism for the steering gear shown functions to assure the correct rudder position for each corresponding position of the helm. When operating properly, the follow-up mechanism should __________. See illustration GS-0123.
