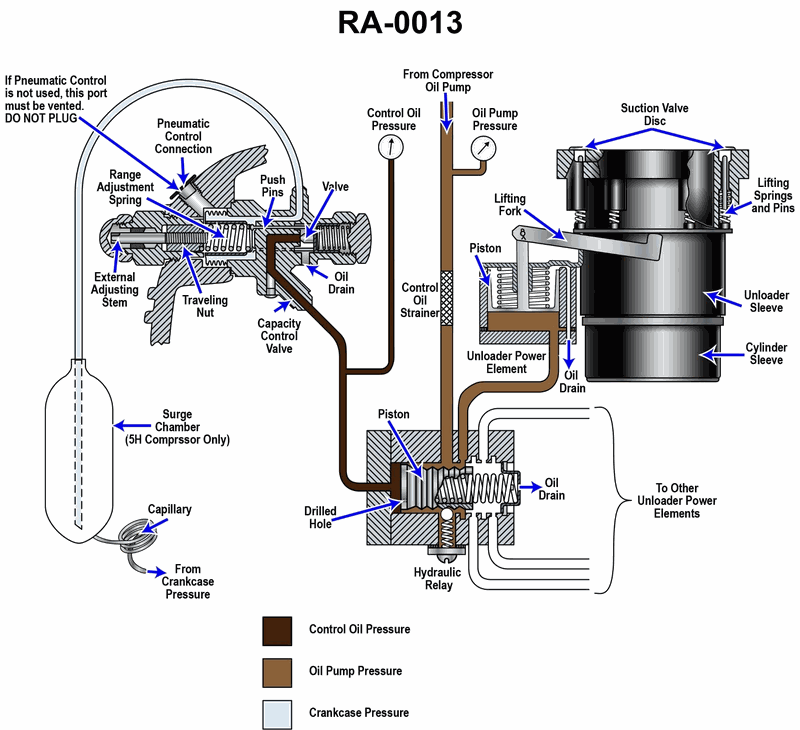

The fluid used to act against hydraulic relay piston to control how many cylinders are unloaded in the refrigeration compressor capacity control system illustrated, is obtained from where? See illustration GS-RA-13.
