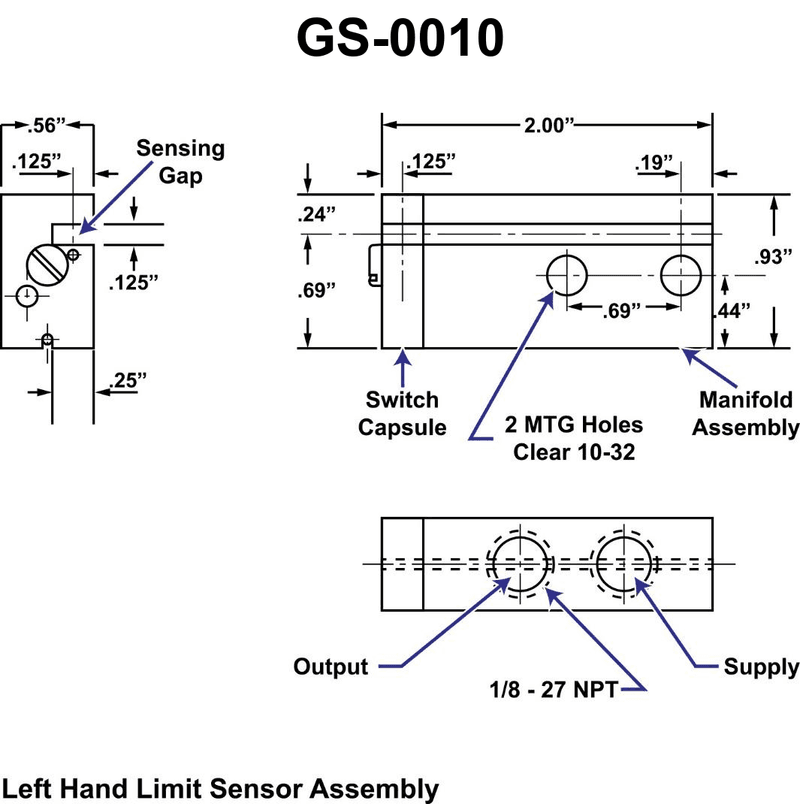

The dimension of the sensing gap in the left hand limit sensor assembly shown in the illustration is __________. Illustration GS-0010
β’ Carefully read all dimension arrows around the Sensing Gap label in the left-hand view of the assembly β’ Notice how the two 0.125 inch dimensions are placed relative to the top and bottom surfaces that form the gap β’ Think about whether the gap itself is directly dimensioned, or whether you must add or compare given dimensions to find it
β’ Which lines or surfaces are actually forming the sensing gap, and what do the nearby 0.125 inch dimensions refer to? β’ If you imagine the moving part shifting up or down, what total clearance between those two faces would that create, based on the dimensions shown? β’ Among the answer choices, which one matches the distance suggested by combining or interpreting the two 0.125 inch markings?
β’ Verify exactly which arrows belong to the sensing gap, not just any nearby dimension β’ Confirm whether you should add the two 0.125 inch values or treat only one as the size of the gap β’ Check that your chosen value is one of the standard fractional inch options given: 1/8, 1/4, 3/8, 1/2
