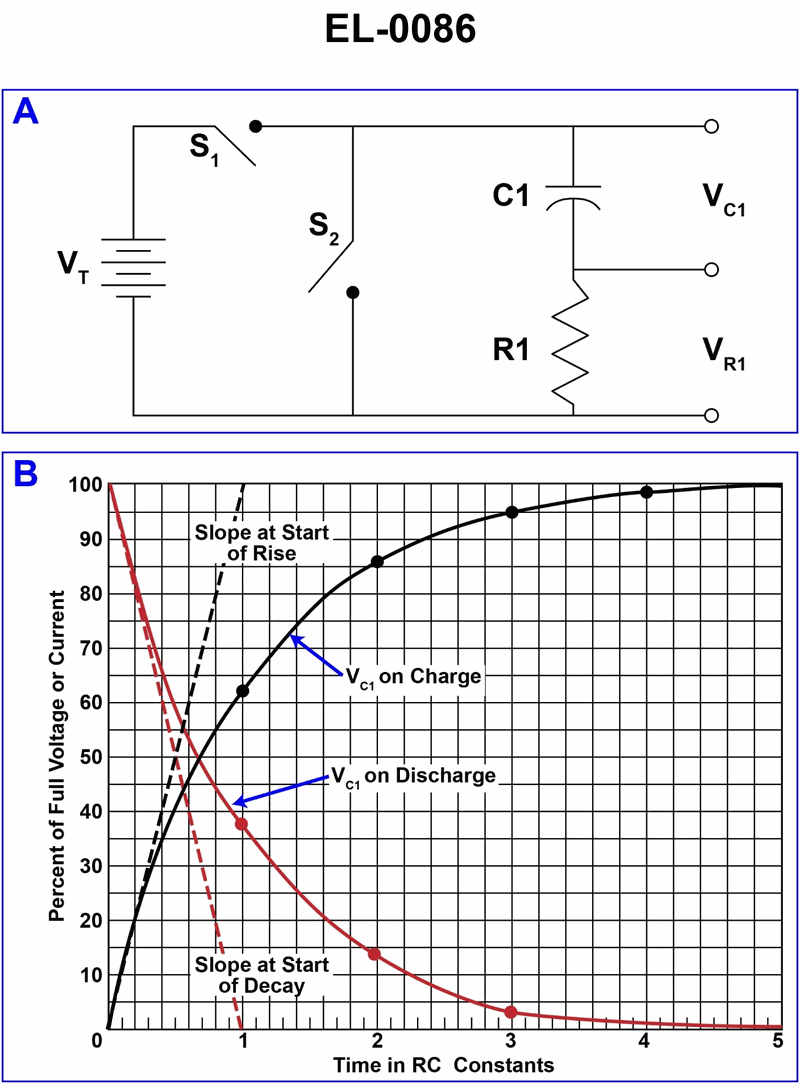

The diagram shown in the illustration demonstrates one of the useful properties of an 'RC' time constant circuit. In terms of the charging and discharging cycles of "C1", what statement is true? See illustration EL-0086.
