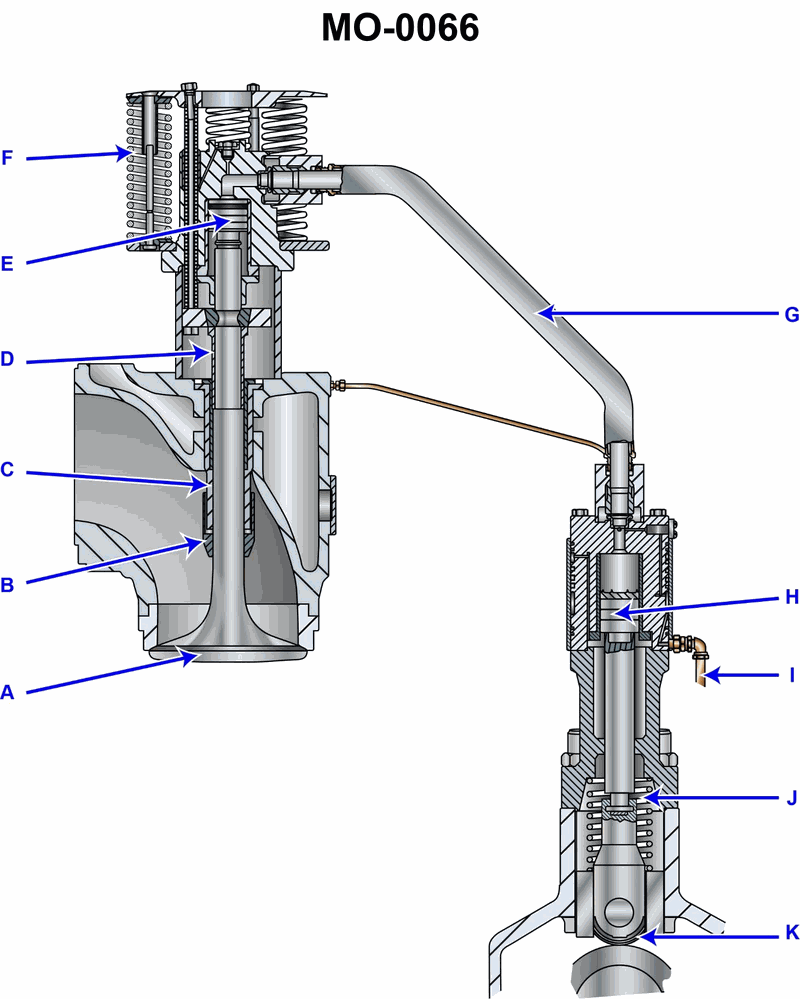

The device shown in the illustration is opened by force as provided by __________. See illustration MO-0066.
