The device shown in the illustration is a __________. Illustration MO-0008

Back

Question 1 of 20

5eccef9bbacbc34ba4d453ca

The device shown in the illustration is a __________. Illustration MO-0008

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

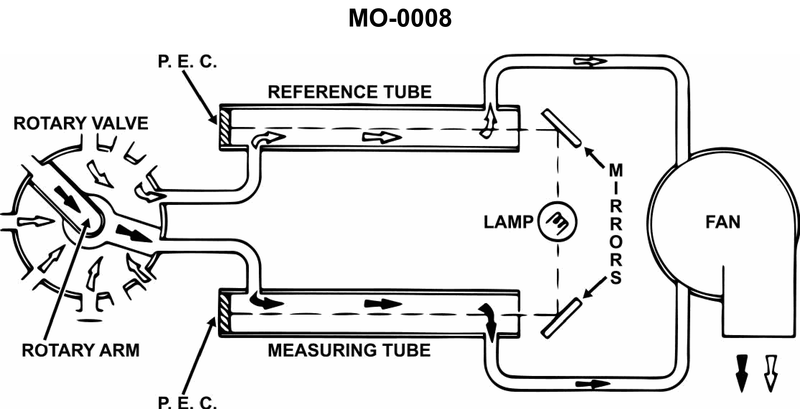

• Notice the reference tube and measuring tube and how air flows through them. • Focus on the lamp, mirrors, and P.E.C. (photoelectric cells) and what they are typically used to detect in engine safety systems. • Think about which devices need to compare a clean sample with a sample from the engine to detect a dangerous condition.
