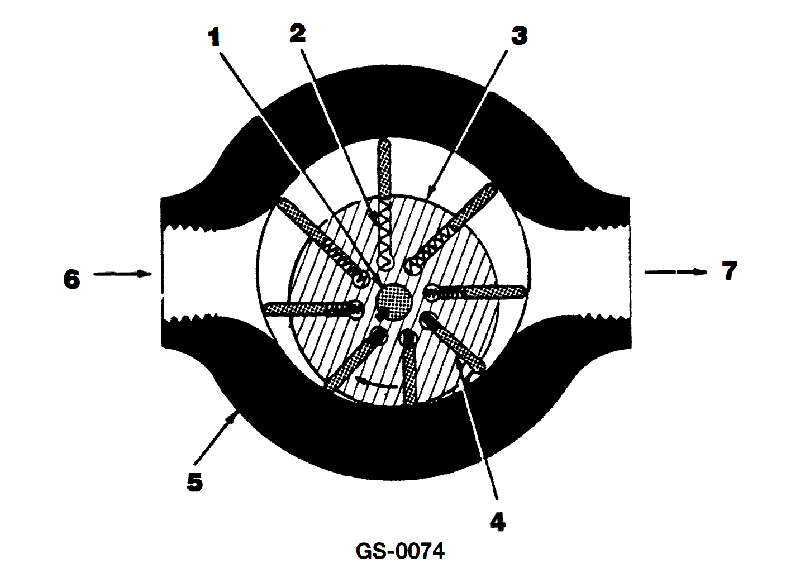

The device illustrated is considered to be a pump. Which of the following statements is true if it is to be used as a hydraulic motor? See illustration GS-0074.
