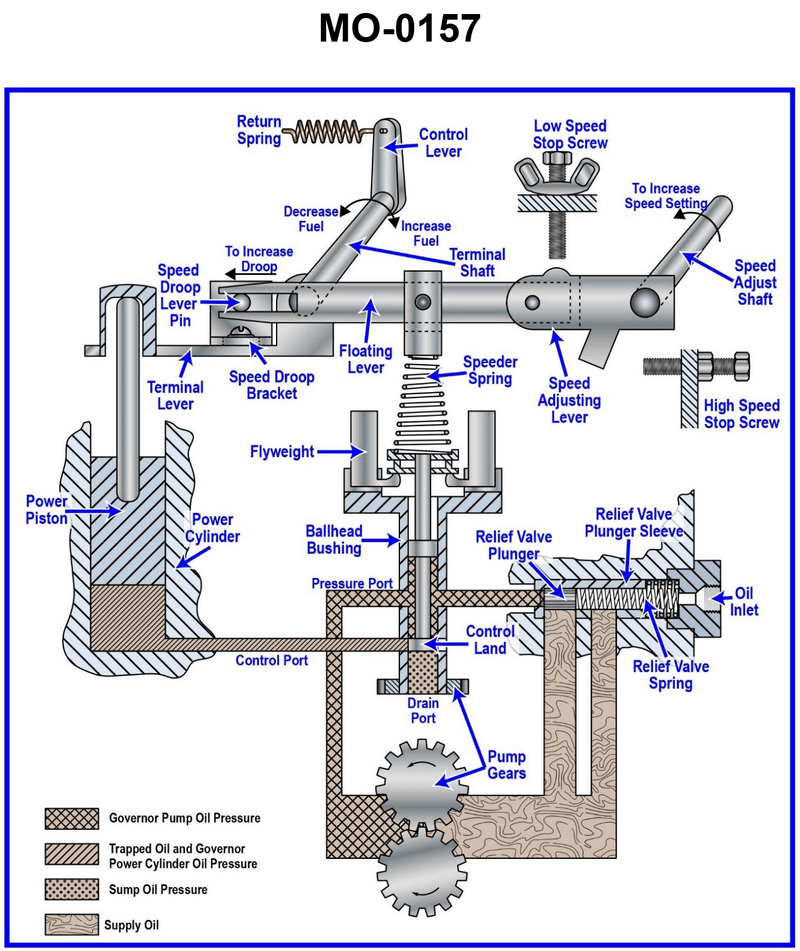

The deck winch on your ship-handling tug is fitted with a Woodward SG Type governor, as shown in the illustration. In addition to variable governed speed setting, what other group of settings is built into this particular governor? Illustration MO-0157
