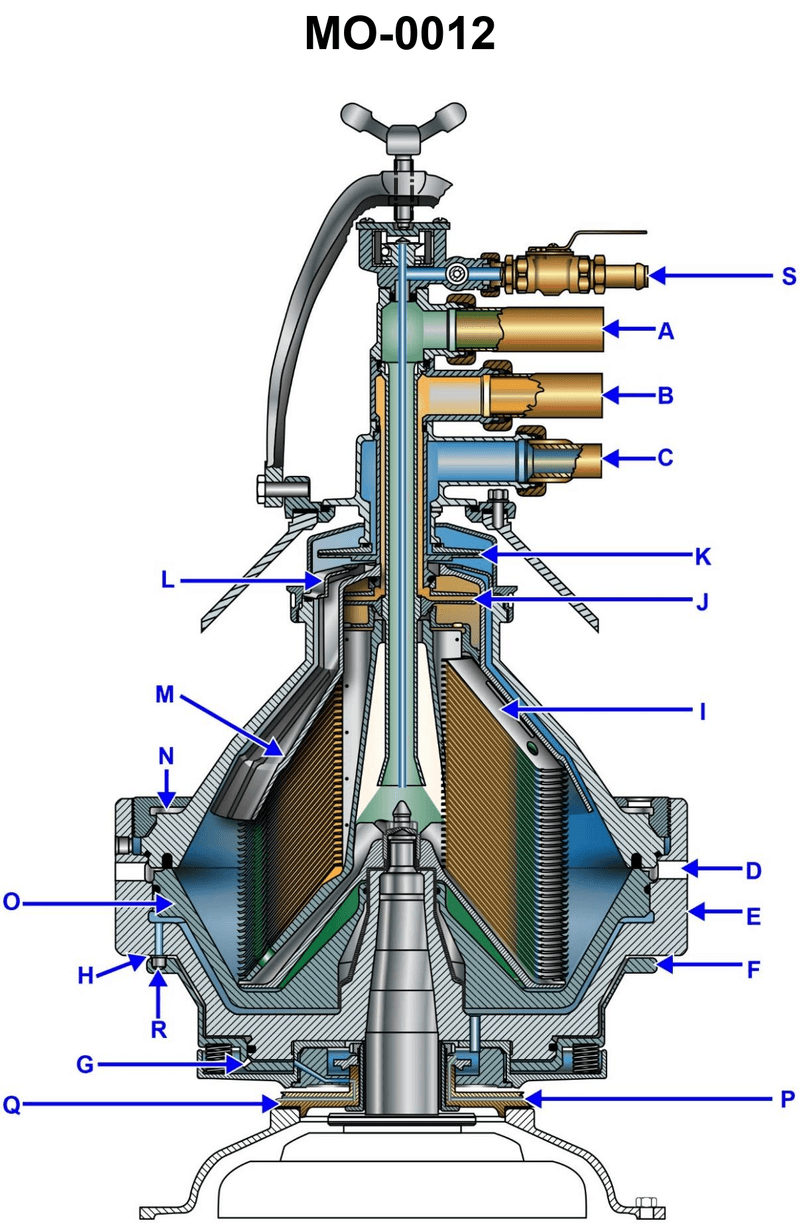

The component labeled "O" on the device shown in the illustration is called the __________. See illustration MO-0012.

Back

Question 1 of 27070

The component labeled "O" on the device shown in the illustration is called the __________. See illustration MO-0012.

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Centrifugal purifier bowl components – know the purpose of the bowl body, bottom disk, and sliding bowl bottom. • How sludge is discharged from an automatic fuel oil purifier. • The difference between the stationary outer casing and the internal moving bowl parts.

💭 Think About

• Look at where label "O" is pointing: is it an internal moving part of the bowl, or the fixed outer wall of the machine? • Which of the listed names would logically be associated with a part that forms the lower side wall of the rotating bowl assembly? • Think about which item would actually perform separation, versus which items are just structure or describe the entire device.

✅ Before You Answer

• Verify whether "O" is part of the rotating bowl assembly or the non‑rotating frame/casing. • Check if the term you choose would describe a single component, not the whole machine (e.g., "sludge separator" is usually the name of the entire unit). • Confirm from the drawing whether "O" appears to move for sludge discharge (typical of a sliding bottom) or simply forms the main body of the bowl.

Question 1 of 27070

The component labeled "O" on the device shown in the illustration is called the __________. See illustration MO-0012.

sliding bowl bottom

bottom disk

sludge separator

bowl body
