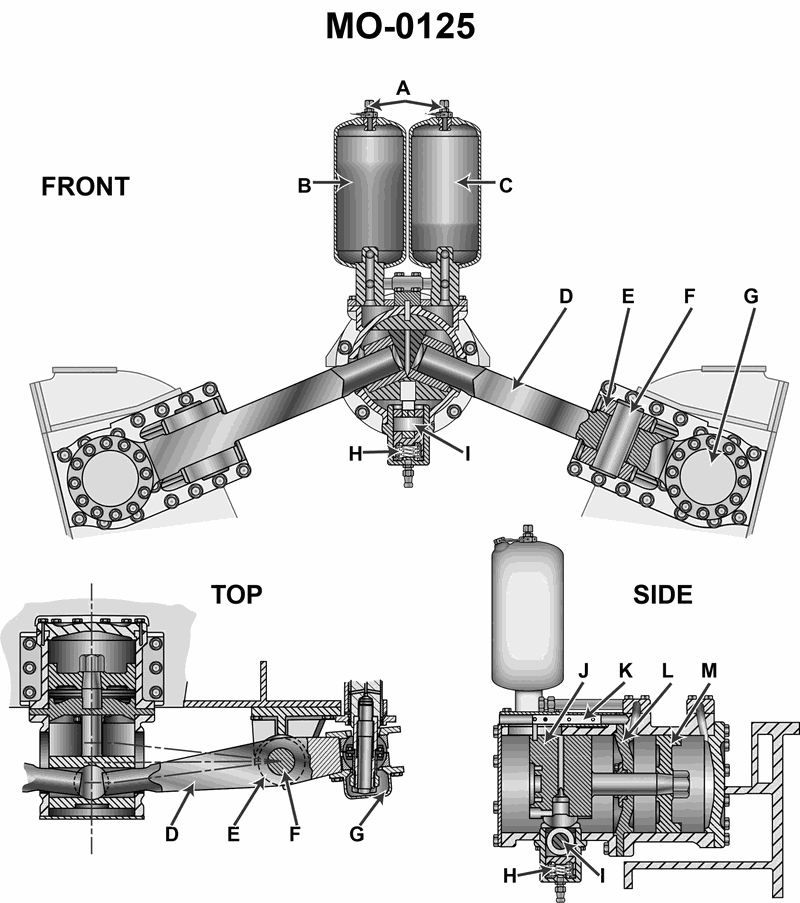

The component labeled "A" on the engine reversing device shown in the illustration, performs its function by transmitting _______. Illustration MO-0125
