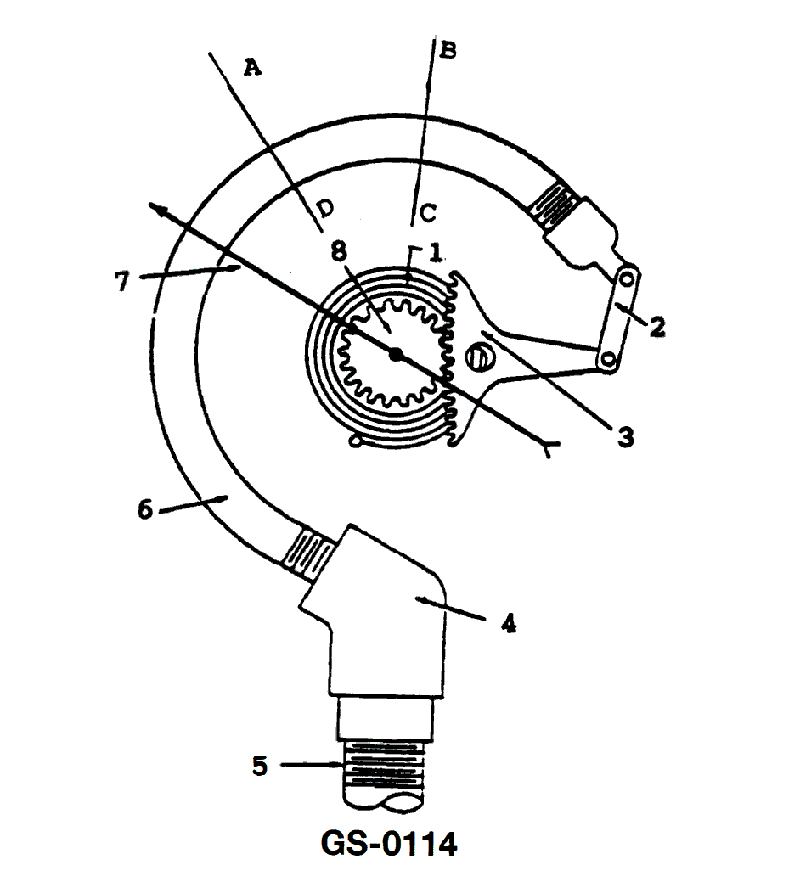

The Bourdon tube-type pressure gage will begin to straighten out when pressure is applied due to the __________. See illustration GS-0114.

Back

Question 1 of 20

5eccefa5bacbc34ba4d48747

The Bourdon tube-type pressure gage will begin to straighten out when pressure is applied due to the __________. See illustration GS-0114.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Bourdon tube pressure gauge construction (curved, flattened tube that tends to straighten when pressurized) • Difference between pressure (force per unit area) and total force (pressure × area over which it acts) • How curvature changes the inner vs. outer circumference areas when pressure acts inside a bent tube

💭 Think About

• When uniform internal pressure acts inside a curved tube, is the pressure itself higher on the inner or outer wall, or is it the same everywhere? • If pressure is the same everywhere, what makes one side of the tube experience a larger total force than the other? Think about which side has the larger surface area for the same angle of curvature. • Which side (inner or outer) will tend to stretch/straighten the tube when the larger total force acts there?

✅ Before You Answer

• Confirm that pressure inside the tube is uniform and does not depend on inner vs. outer radius for a static fluid or gas. • Visualize (or sketch) a small slice of the curved tube and compare the area of the inner wall vs. the outer wall for that slice. • Match the choice that mentions total force acting on the side (inner or outer) that would logically cause the tube to try to straighten.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

The Bourdon tube-type pressure gage will begin to straighten out when pressure is applied due to the __________. See illustration GS-0114.

applied pressure being the greatest on the outer circumference

applied pressure being the greatest on the inner circumference

total force being the greatest on the inner circumference

total force being the greatest on the outer circumference
