Question 1 of 205eccef9cbacbc34ba4d45918

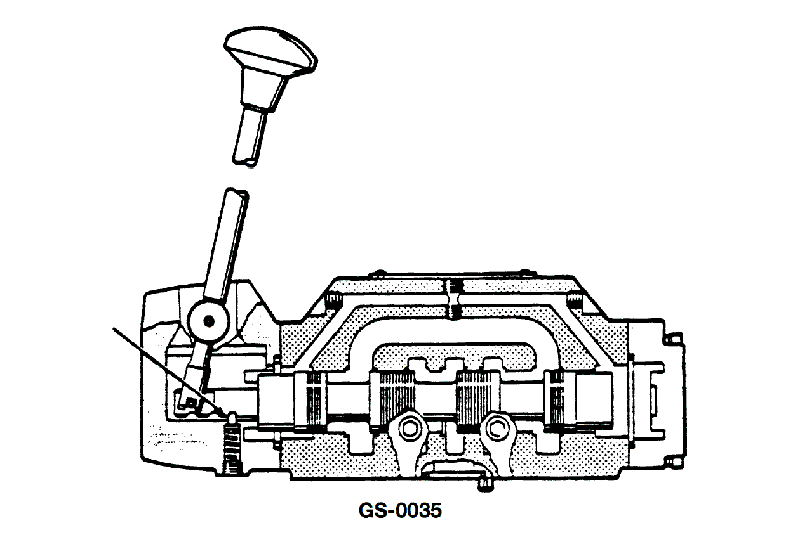

Regarding the device shown in the illustration, if the operator releases the handle while the system output is in motion, the __________. See illustration GS-0035.

Back

Question 1 of 20

5eccef9cbacbc34ba4d45918

Regarding the device shown in the illustration, if the operator releases the handle while the system output is in motion, the __________. See illustration GS-0035.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Note how the handle connects to a spring‑centered directional control valve body in the illustration. • Think about what a centering spring does when the actuating force (your hand on the lever) is suddenly removed. • Relate the valve spool position to system output motion: how does output behave when the spool is in NEUTRAL vs in an actuated position?

💭 Think About

• When you let go of the handle, what forces are still acting on the valve spool: your hand, gravity, or internal springs? Which one dominates? • If the valve moves back toward its normal (neutral) position, what happens to flow and pressure to the actuator that is driving the system output? • Look closely at the ends of the valve spool in the illustration—do you see anything that suggests it will stay where it is (detent) or return to a centered position (springs)?

✅ Before You Answer

• Identify whether the illustration shows return springs on one or both ends of the spool; that tells you if the valve is self‑centering. • Decide what the neutral (center) position of this valve does to the flow: does it stop flow, allow drift, or maintain position? • Confirm whether there is any mechanical detent or lock on the lever; if there isn’t, assume the spring action will control the final spool position.
