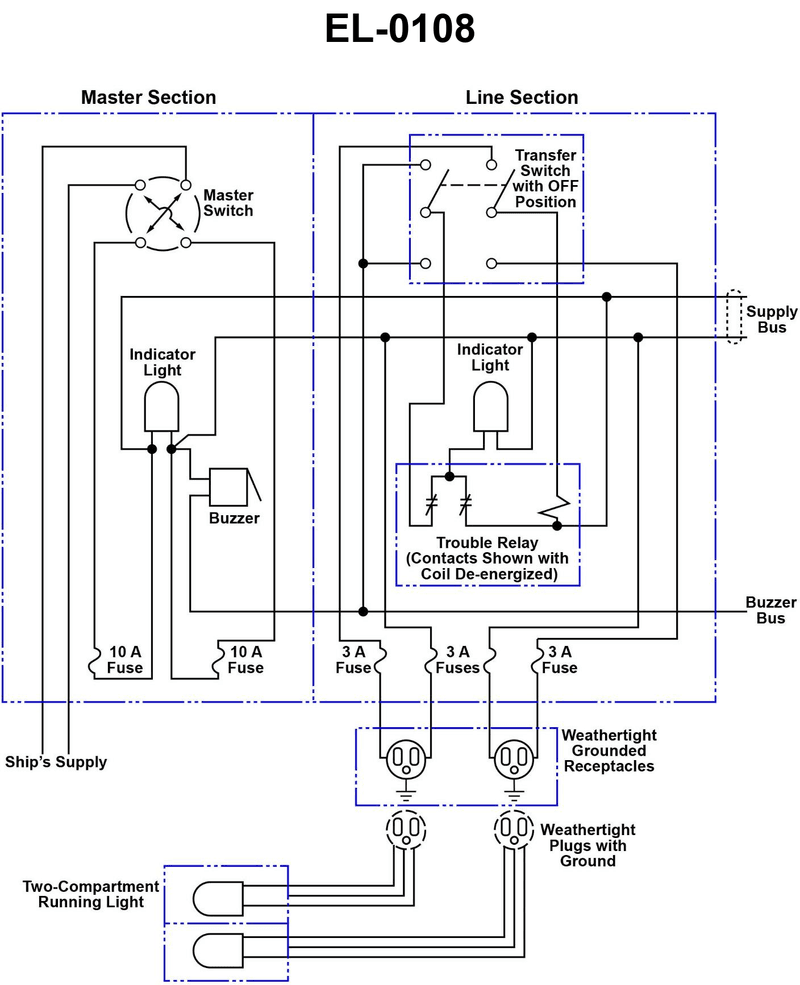

Referring to the illustration pertaining to the semi-automatic navigation light panel circuit, assuming that the transfer switch is in the primary lamp position, in addition to the buzzer sounding, what will be the response of the indicator lamps when the primary lamp of the particular navigation light burns out? Illustration EL-0108
